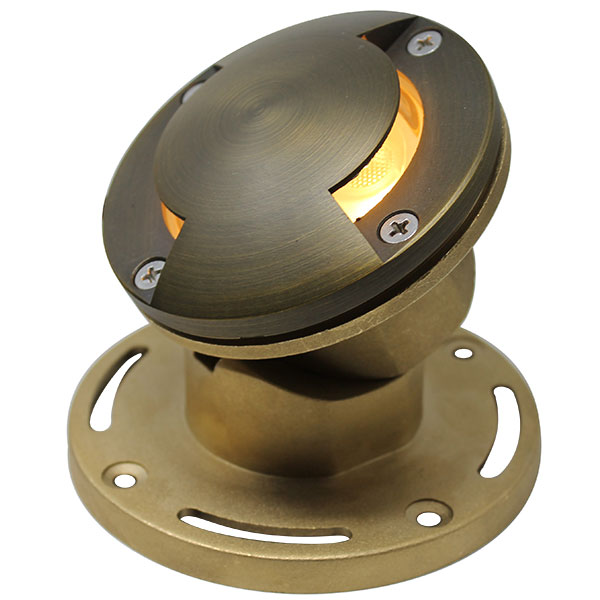

Compact Cast Brass LED Spotlight Bi-Directional

Note: For longer runs, some applications may experience Voltage Drop. Click to learn more.

Overview
Specifications
Guides
Videos

N.S.C. System Connection Example

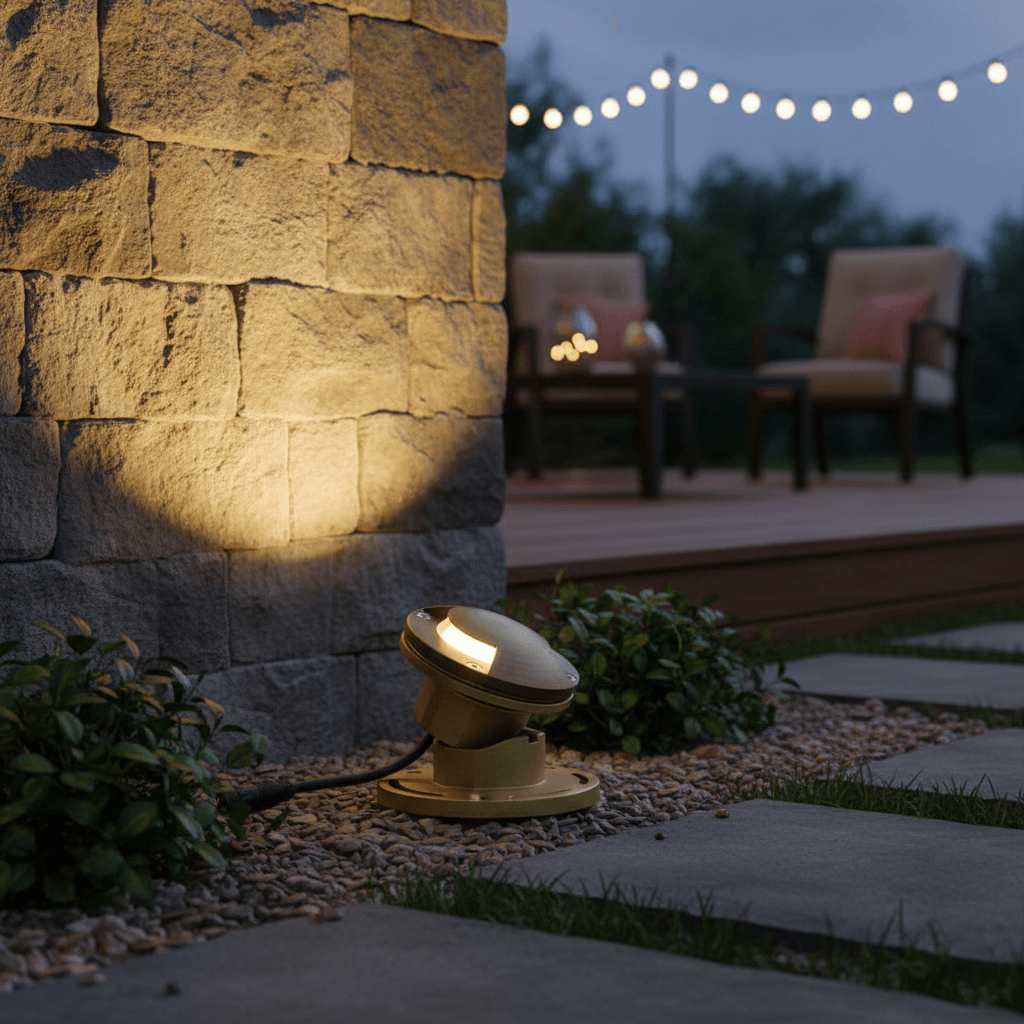

Perfect for accent lighting outdoor areas, this LED spotlight is short and stout but is no slouch in light output. Featuring energy efficient integrated LEDs and heavy duty construction makes this unit is perfect for a wide variety of outdoor lighting applications. The fixture body and the surface mounting base is made from solid cast brass, making the fixture incredibly durable. Adjust the angle of the light output going from straight up to high angle lighting, via retention screw. Combined with the N.S.C. wiring system, the LD-U110 can be instant integrated into your landscape lighting system, no cutting, no splicing.

N.S.C. Retrofit Adapter Diagram

To retrofit this fixture to your existing lighting setup, simply use our retrofit adapter (available as additional option) and you can easily connect your new fixture without splicing any wires, saving you a lot of time during installation!

Interchangeable beam angles
The LD-U110-MONO features the New OPTICSwap System which allows you to easily switch out the lens by removing the cover and the gasket underneath to switch between outputting 35&deg and 60&deg beam angles.

No Splice Connection Wiring System
Leave the wire strippers in your tool box because with AQLighting's new N.S.C. system, you won't need them for your lighting application. Each point of contact is tool-free and can be connected in ~5 seconds. This wiring system will save you a ton of time and labor. Should you desire more light fixtures in the future, the system is also easily expandable.

Material	Cast Brass
Voltage	12V AC / DC
Socket Type	N/A
Bulb Type	Integrated LED
Power Draw	6w Max
Light Output	500 Lumens
Color Temperature	Warm White 2700K
Beam Spread	35° / 60°
Dimming Capacity	Full Range
Cable Lead	1' w/ NSC Male Connection
Dimensions	Coming Soon

Specification Sheet Download

Dimensions Diagram:

This unit is an NSC light fixture, which means that it offers the same benefits as commercial grade lighting, but without the need for hard wiring. The NSC system uses a 2-pin connection, each of which is IP68 rated—to ensure wiring is protected and the polarity is consistent.

For more info, please view our NSC article:

Intro to NSC (No Splice Connection) Systems

Brass v. Aluminum
