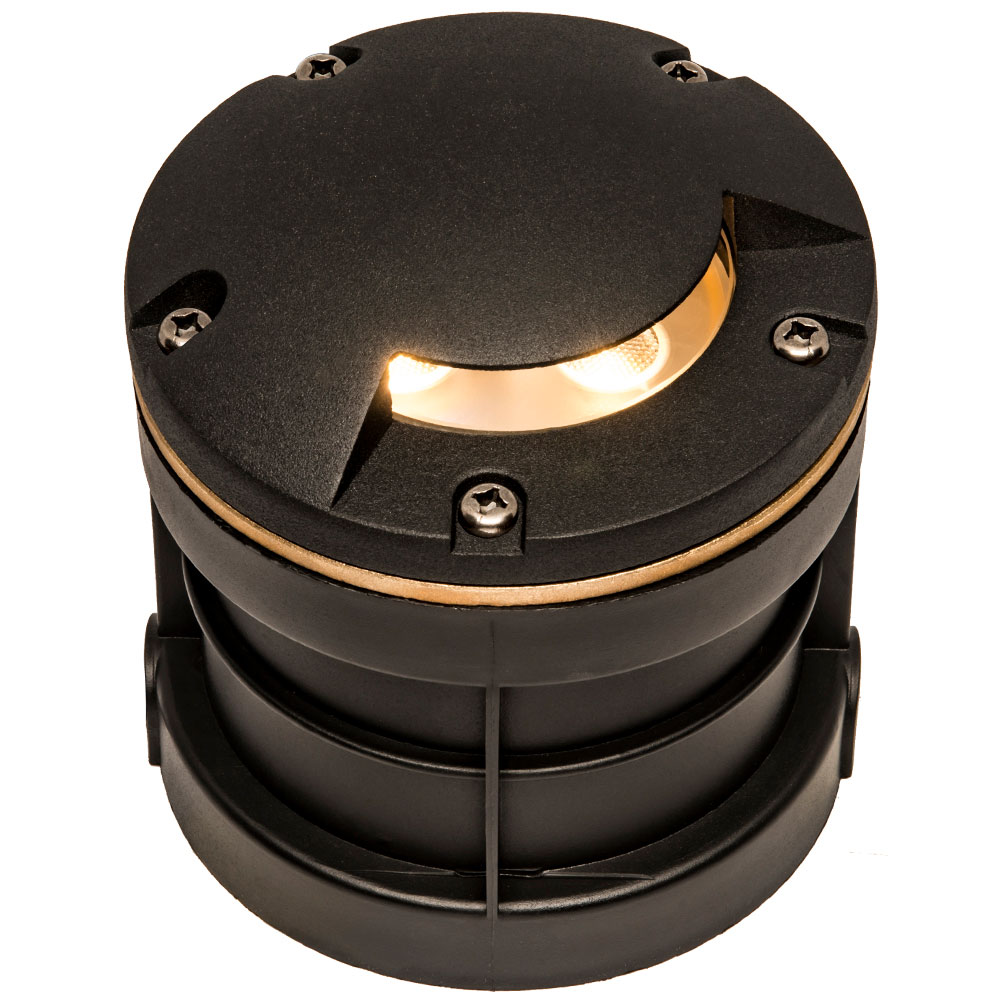

12V 6W Cast Brass Integrated LED In Ground Well Light w/ One Leaf Mono Cover- 5" Diameter - OIGL-5I-MR1

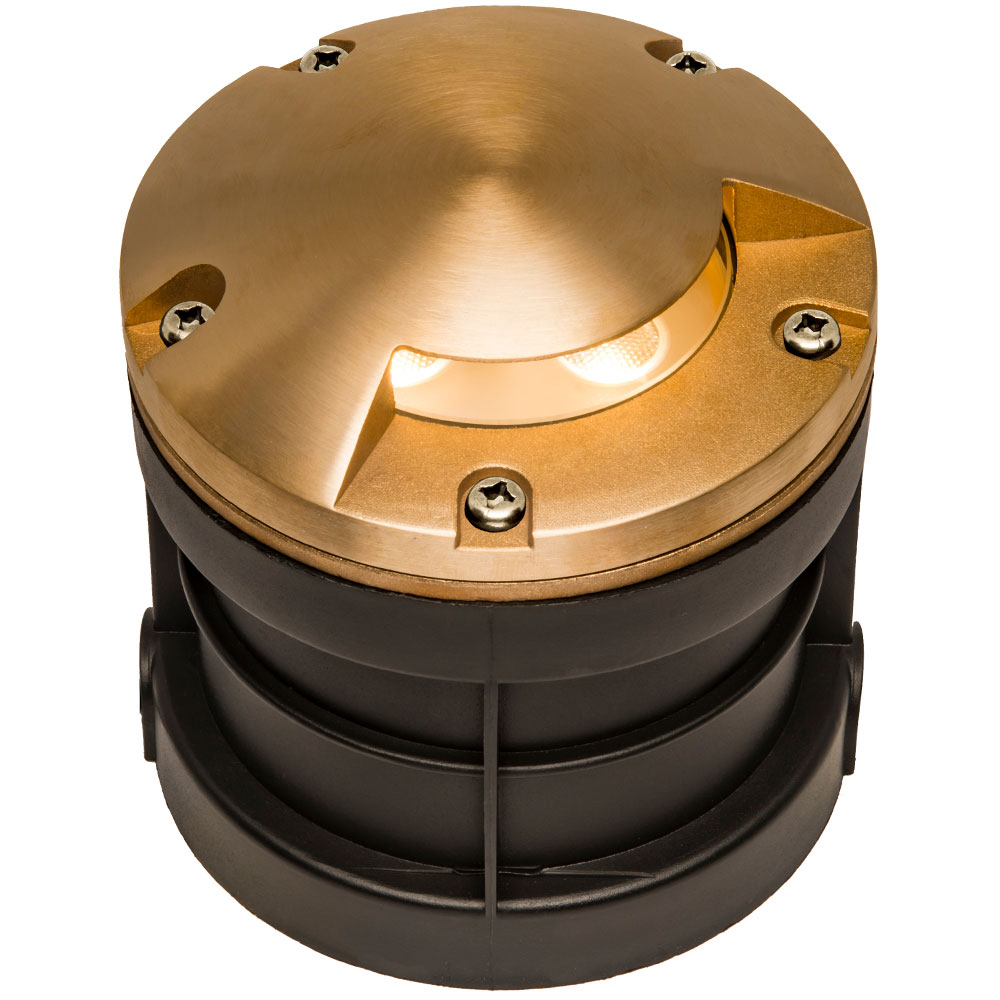

Raw Cast Brass Mono-Directional Cover
product detail banner

12V 6W Cast Brass Integrated LED In Ground Well Light w/ One Leaf Mono Cover- 5" Diameter - OIGL-5I-MR1

SKU:
OIGL-5I-MR1
BRAND:
AQLIGHTING
Weight:
2.30 LBS
Finish::
Black
Finish::
Bronze
Finish::
Raw Brass
Material::
Brass
Voltage::
12V
Light Position::
Fixed
Fixture Quantity required
# of 3FT Jumpers
# of 6FT Jumpers
# of 15FT Jumpers
# of 30FT Jumpers
# of 3FT Power Connectors
# of 6FT Power Connectors {{AQGPCL-LT3}}
# of 15FT Power Connectors
# of 30FT Power Connectors
# of T Connectors
# of X Connectors required
$48.98
product detail banner mobile

Note: For longer runs, some applications may experience Voltage Drop. Click to learn more.

N.S.C. System Connection Example

NSC Wiring System Connection Sample

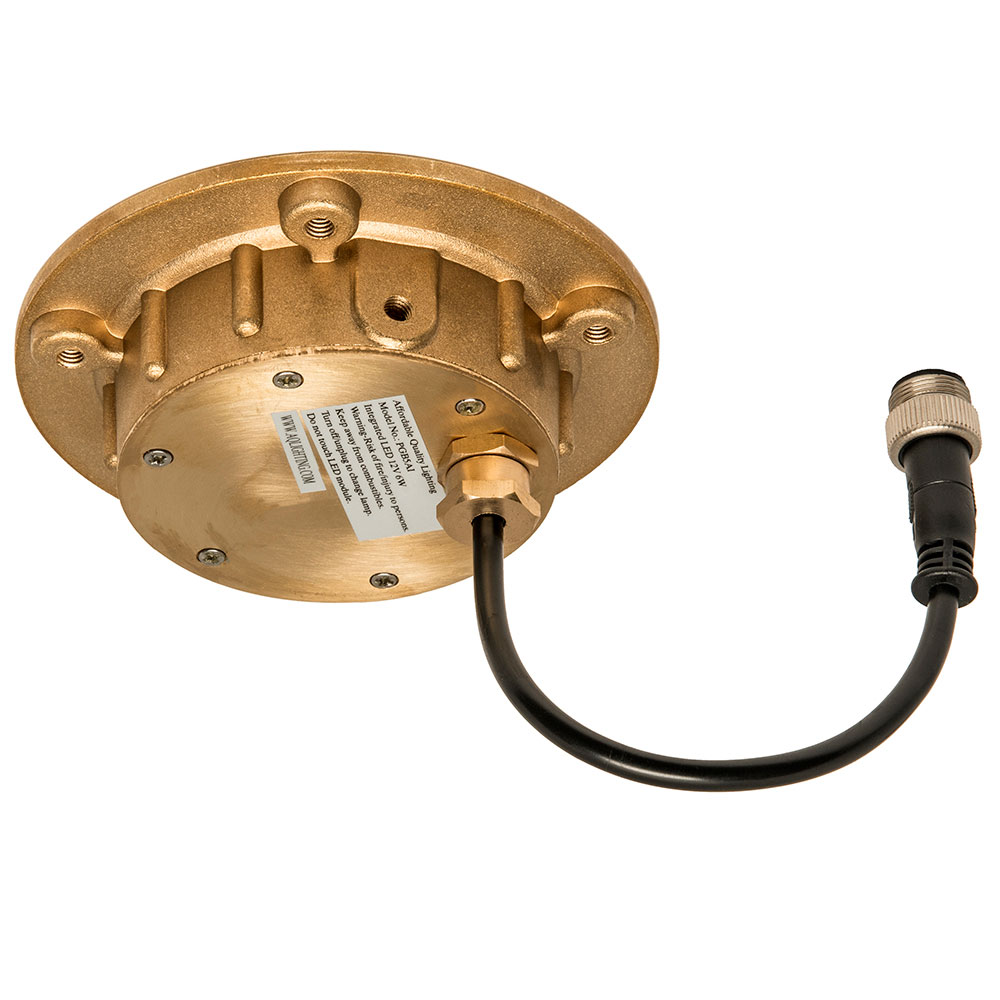

Ideal for accent lighting outdoor areas, this heavy duty well light is crafted from solid cast brass and features integrated LEDs for maximum energy efficiency & light output. The mono direction cover is available in raw brass, bronze and black, great for commercial and residential lighting applications. The LED panel uses just 6 watts of energy, is fully dimmable and features OPTICswap for easy beam spread customization and the new NSC system allows for splice-free, polarity consistent, and watertight connections, cutting install time down to seconds. This 5" diameter LED well light is also compatible with our own concrete mounting sleeve system for sidewalk and pathway installation applications.

N.S.C. Retrofit Adapter Diagram

NSC Retrofit Wiring Diagram

To retrofit this fixture to your existing lighting setup, simply use our retrofit adapter (available as additional option) and you can easily connect your new fixture without splicing any wires, saving you a lot of time during installation!

NSC Wiring

Innovative No Splice Connect (NSC™) Wiring

  • Using the new and innovative NSC™ technology which eliminates the need for time consuming wire splicing during installation, you can have these fixtures up and running in just one short afternoon.
  • Simply connect the fixtures to a power source using the NSC™ cables and it's ready for operation.
  • With the male-to-female adaptor, you can connect multiple fixtures to work together without the need for cutting or splicing wires.
Adjustable Integrated LED

Integrated LED

  • Integrated LED eliminates the need for maintenance on your fixtures.
  • LED consumes up to 80% less energy than the standard incandescent equivalent and lasts years longer.
  • With the OPTICSwap system, easily change the beam spread for your integrated light to 30° or 60°.
One Direction Mushroom Style Cover

Mono-Directional Cast Brass Cover

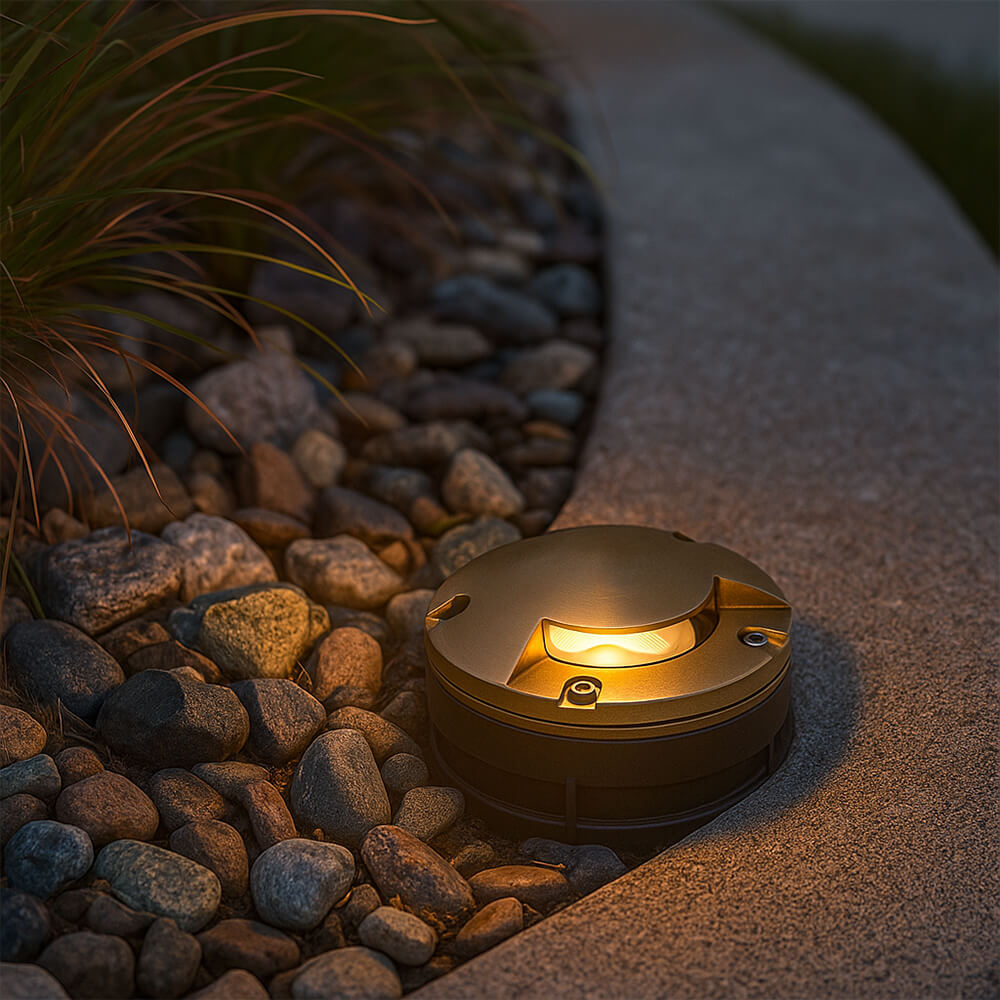

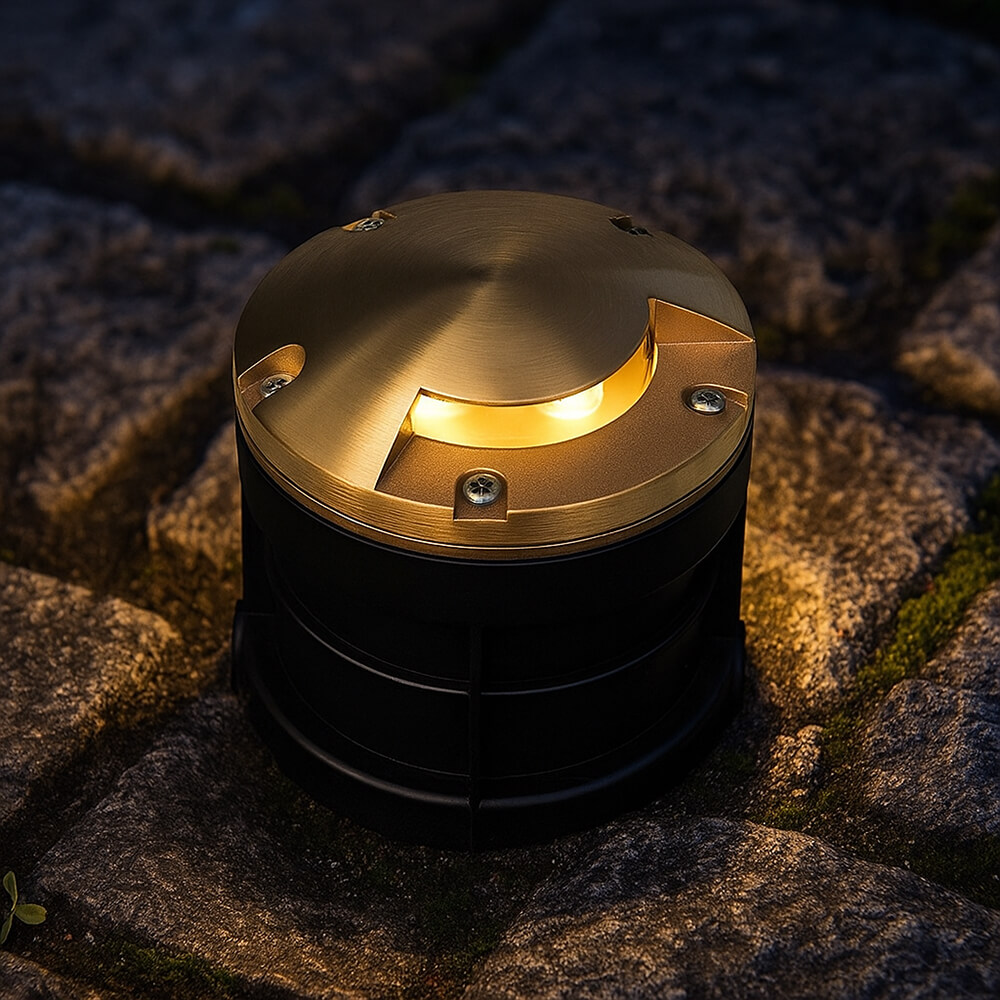

  • Featuring a mono direction cover which produces a beautiful beam of light perfect for lighting walkways and driveways or creating incredible accent lighting in a variety of outdoor spaces, this fixture is the perfect solution for your outdoor lighting needs.
  • Combined with ease of installation, it is easy to set up this innovative fixture in just a single afternoon.
Included:
  • 1x PGB5I LED In Ground Well Light Fixture
  • 1x OPTICswap 35° Beam Angle Lens
  • 1x OPTICswap 60° Beam Angle Lens
Material Cast Brass
Voltage 12V AC / DC
Socket Type N/A
Bulb Type Integrated LED
Power Draw 6w Max
Light Output 500 Lumens
Color Temperature Warm White 2700K
Beam Spread 35° / 60°
Dimming Capacity Full Range
Cable Lead 1' w/ NSC Male Connection
Dimensions 4-15/16" O.D. X 2-1/4" Height
Specification Sheet Download

Dimensions



Product Showcase - PGB5I

Tree Uplighting Demonstration
