GrandeForte MonoBeam

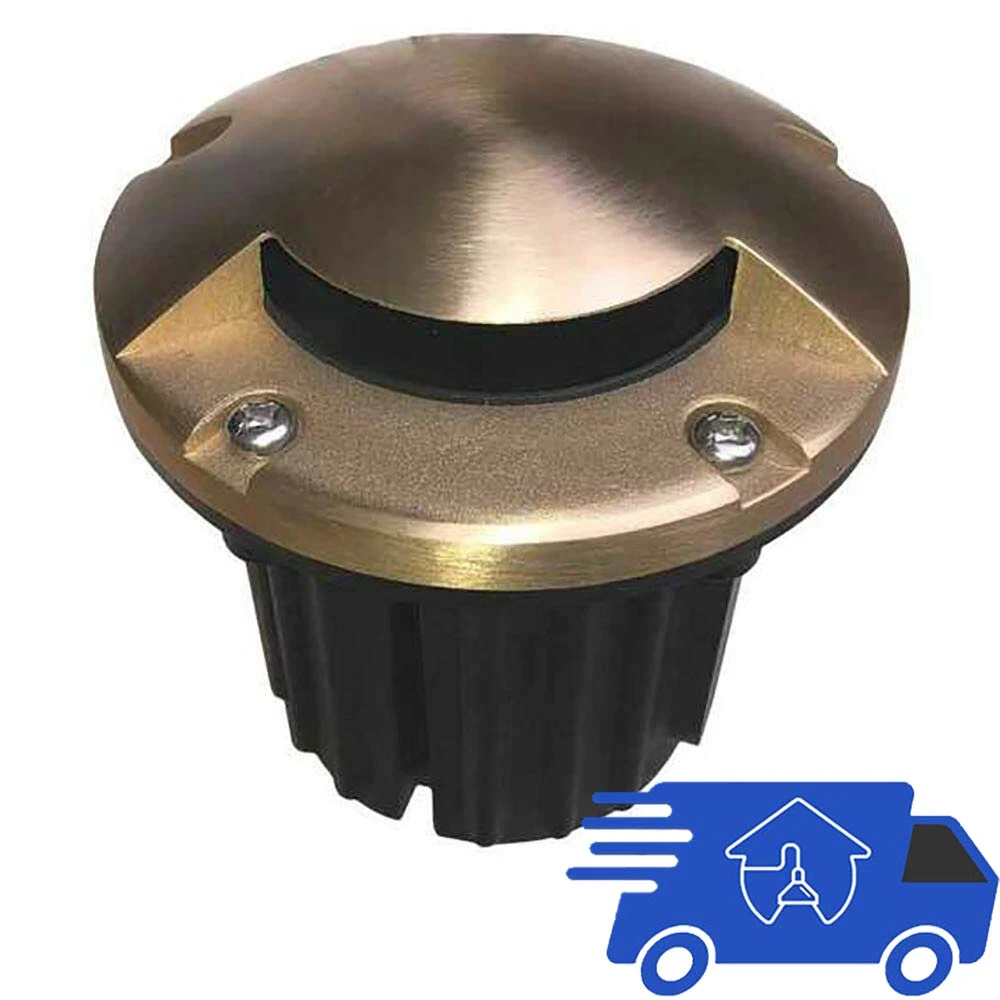

12V 5" Composite In Ground Well Light w/ Brass Mono Directional Cover - OIG-5B-MR1
12V 5" Composite In Ground Well Light w/ Brass Mono Directional Cover - OIG-5B-MR1
product detail banner

GrandeForte MonoBeam

12V 5" Composite In Ground Well Light w/ Brass Mono Directional Cover - OIG-5B-MR1
SKU:
OIG-5B-MR1
BRAND:
AQLIGHTING
Weight:
0.50 LBS
subtitle:
GrandeForte MonoBeam
Voltage::
12V
Material::
Composite
Material::
Brass
Finish::
Black
Finish::
Bronze
Finish::
Raw Brass
Light Position::
Fixed
Fixture Quantity required
# of 3FT Jumpers
# of 6FT Jumpers
# of 15FT Jumpers
# of 30FT Jumpers
# of 3FT Power Connectors
# of 15FT Power Connectors
# of 30FT Power Connectors
# of T Connectors
# of X Connectors required
$57.98
product detail banner mobile

Note: For longer runs, some applications may experience Voltage Drop. Click to learn more.

N.S.C. System Connection Example

NSC Wiring System Connection Sample

Sleek and strong, the PGC5B-MONO features our single directional mushroom brass cover, available in textured black, electro-plated bronze and stunning raw brass. The mono-directional cover protects observers from bulb glare and directs the light downwards toward the ground, allowing you to provide marker and/or accent lighting and brass material ensures that the fixture is protected from the worst the environment can throw at it. The cover design is re-enforced, making the PGC5B-MONO perfect for driveways or commercial walkways. Rated for a maximum of 35w, the PGC5B series is the perfect canidate for LED retrofitting and the aiming bracket for the socket allows you to control the lighting angle up to 30° in either direction.

N.S.C. Retrofit Adapter Diagram

NSC Retrofit Wiring Diagram

To retrofit this fixture to your existing lighting setup, simply use our retrofit adapter (available as additional option) and you can easily connect your new fixture without splicing any wires, saving you a lot of time during installation!


Cast Brass Mono Directional Cover

  • Featuring a mono direction cover which produces a beautiful beam of light perfect for lighting walkways and driveways or creating incredible accent lighting in a variety of outdoor spaces.
No Splice Connection Wiring System Logo

No Splice Connection Wiring System

  • Leave the wire strippers in your tool box because with AQLighting's new N.S.C. system, you won't need them for installation.
  • Each point of contact is tool-free and can be connected in ~5 seconds. This wiring system will save you a ton of time and labor.
  • Should you desire more light fixtures in the future, the system is easily expandable.
No Splice Connection Wiring System Logo

Easy Expansion Capability

  • With the No Splice Connection (N.S.C.) wiring system, adding more light fixtures to your setup is a breeze. The system is designed to be easily expandable, allowing you to incorporate additional fixtures in the future without hassle.

Tool-Free Connections for Quick Installation

  • The No Splice Connection (N.S.C.) wiring system eliminates the need for wire strippers and complex splicing. Each point of contact can be connected in approximately 5 seconds without the use of any tools. This not only saves you time but also reduces labor and ensures a hassle-free installation process.
Material ABS Composite / Cast Brass
Voltage 12V AC/DC
Socket Type GU5.3 JC Bi-Pin
Bulb Type MR16
Power Rating 35w Max
Wire Lead 7.5" w/ NSC Plug
Dimensions See Below
Certifications IP65 Connection

Product Dimensions


PGC5B Fixture Body Dimensions Diagram
