Note: For longer runs, some applications may experience Voltage Drop. Click to learn more.
N.S.C. System Connection Example

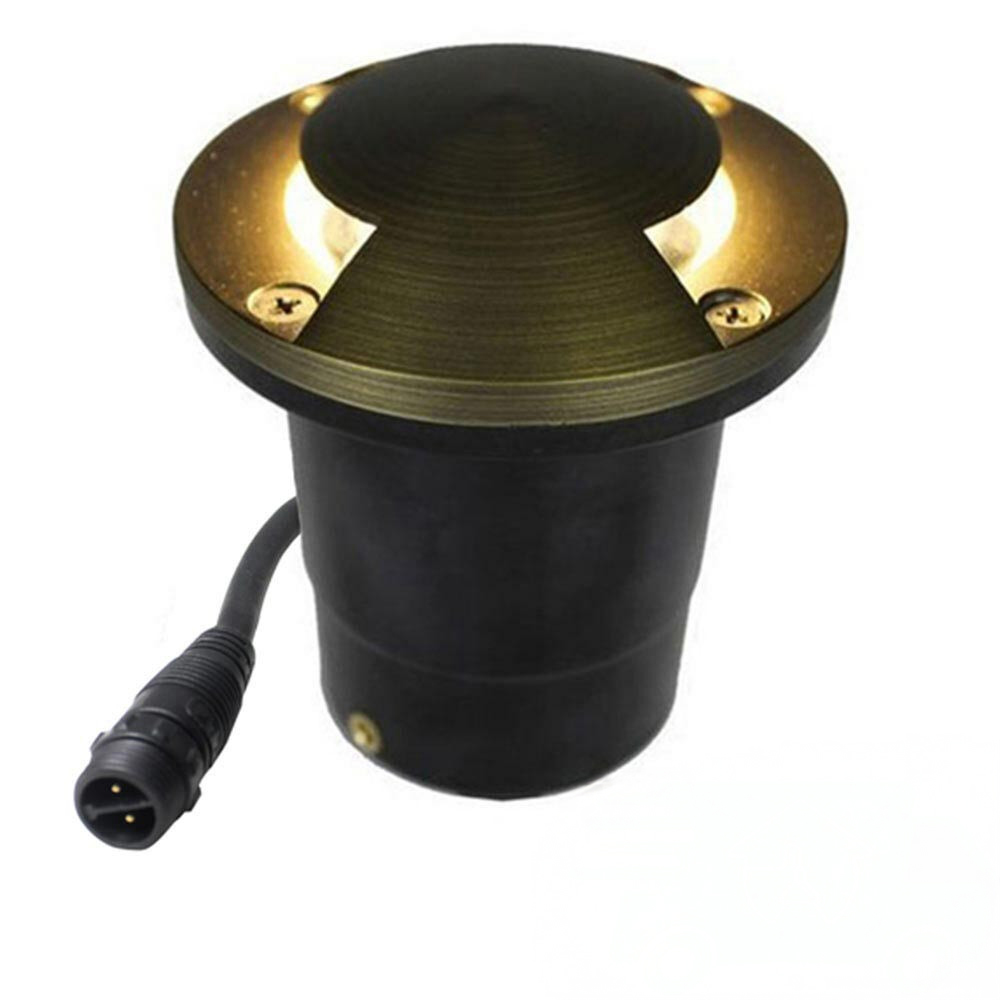

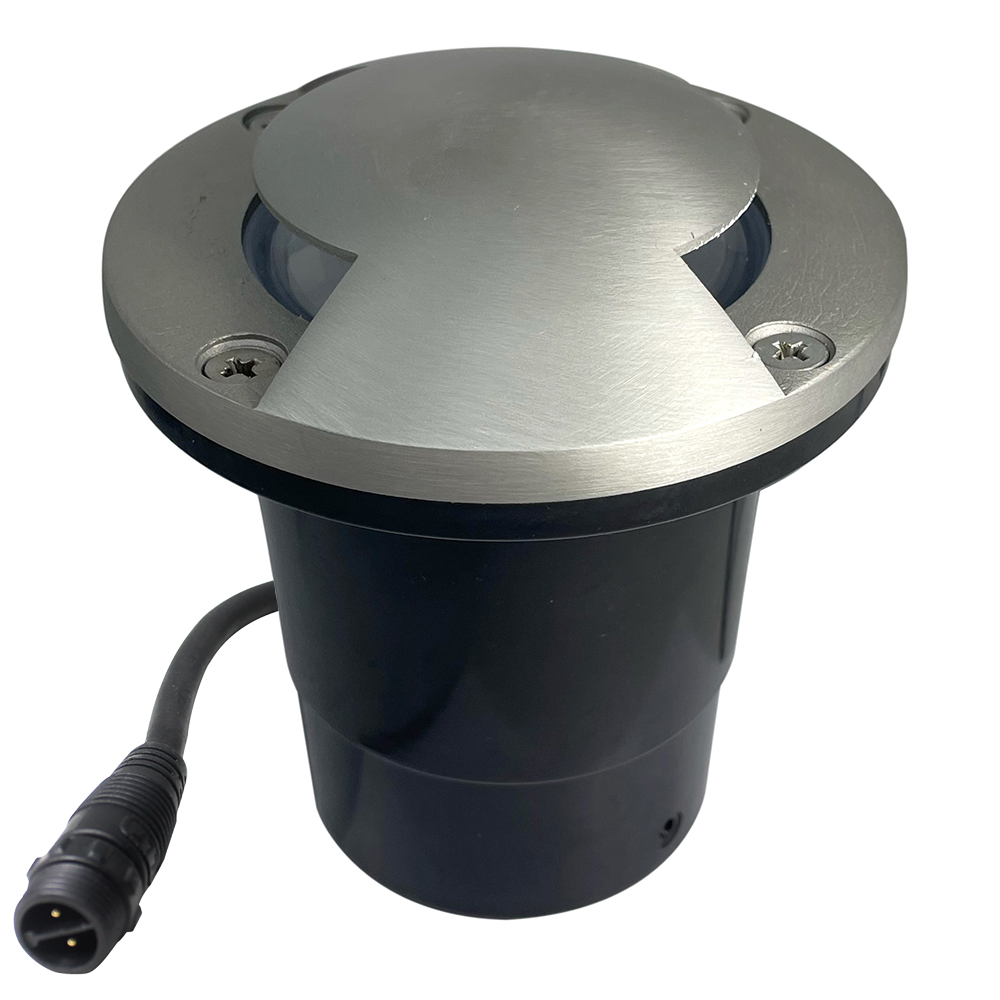

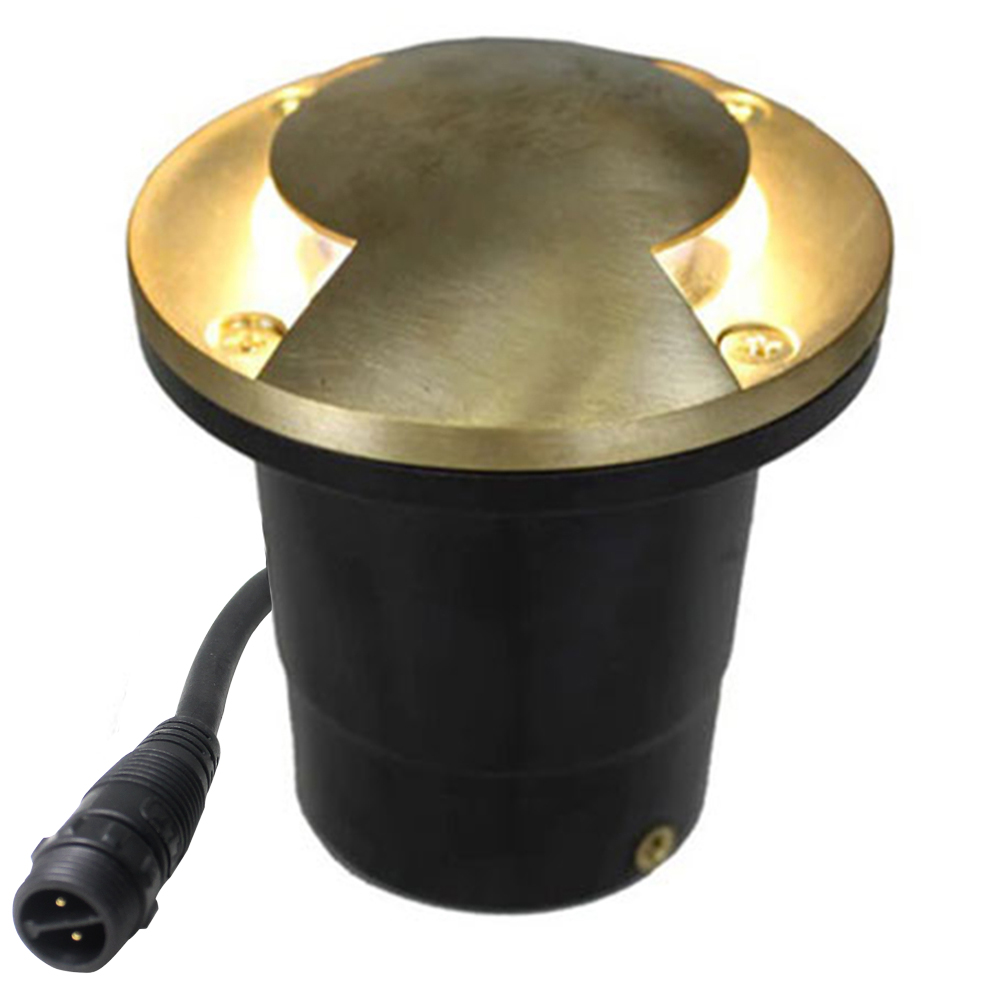

Add a unique style with this 12V In Ground Well Light with a Bi-Directional Cast Brass Cover. AQLIGHTING created this fixture with durability in mind. Using high grade materials, this outdoor yard lighting fixture is guaranteed to last. Using solid composite material, the PBGC3 is lighter and more durable than aluminum. The Bi-Directional uses two wide openings that allow more light output in the two directions you want. This design is ideal to install in a parallel arrangement alongside your walkways. Our Bi-Directional In Ground Well Light comes with a watertight tempered glass lens which will minimize dried condensation on your fixture. The low voltage pathway light has been designed for installation either directly in the dirt or for long lasting application directly in concrete. AQLIGHTING recommends using an ABS composite concrete sleeve for concrete applications.
N.S.C. Retrofit Adapter Diagram
To retrofit this fixture to your existing lighting setup, simply use our retrofit adapter (available as additional option) and you can easily connect your new fixture without splicing any wires, saving you a lot of time during installation!
Bi-Directional Design

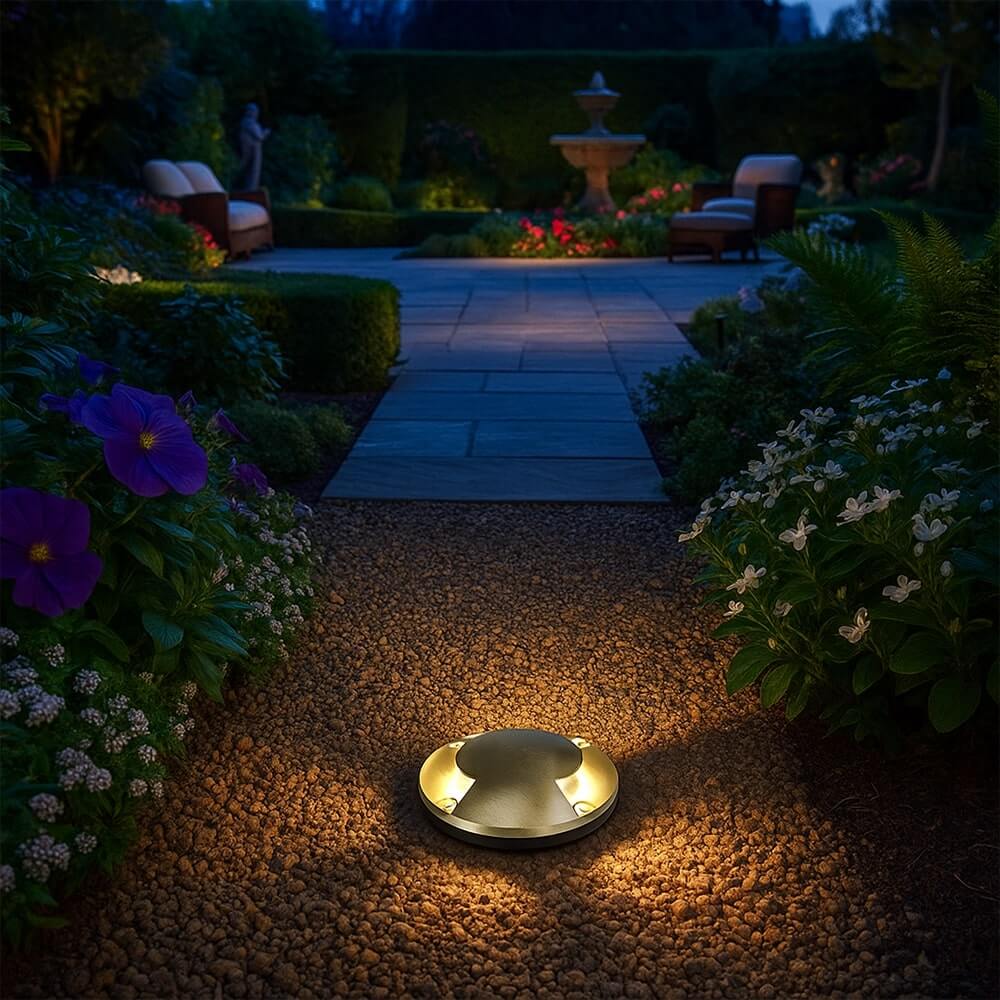

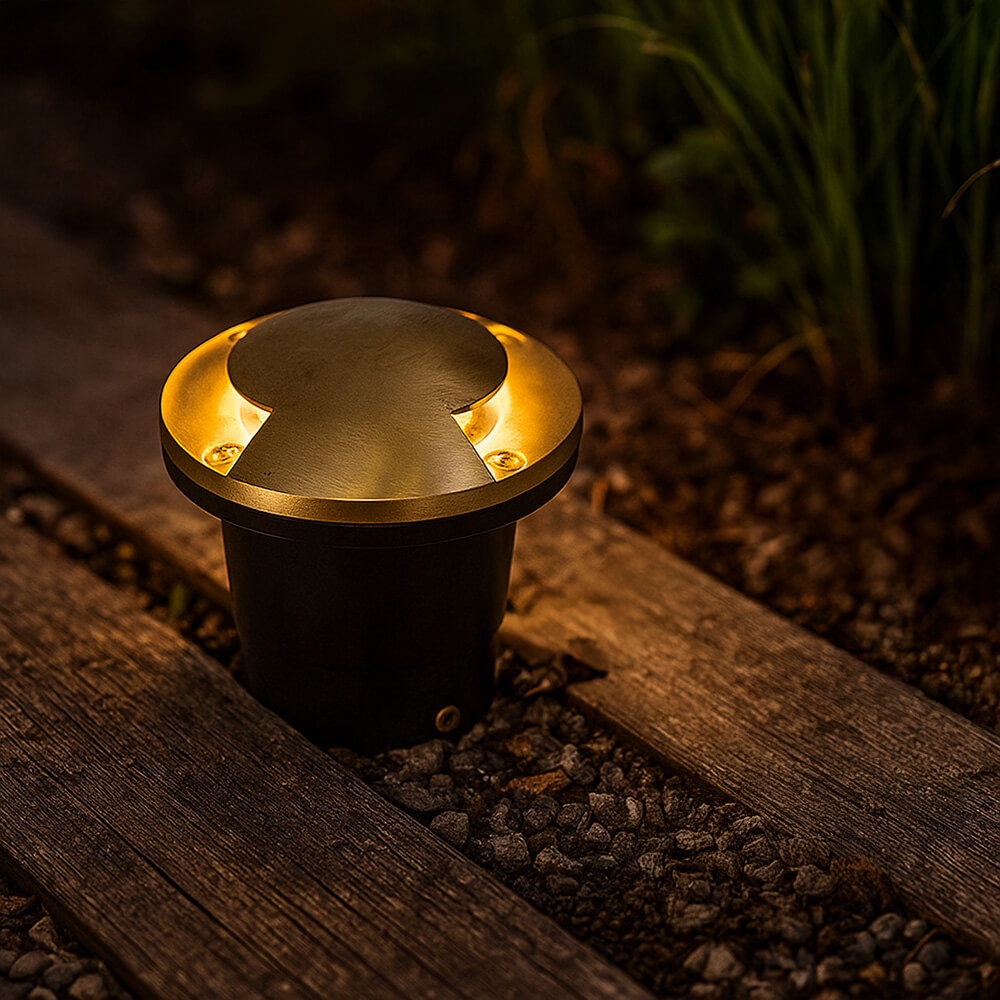

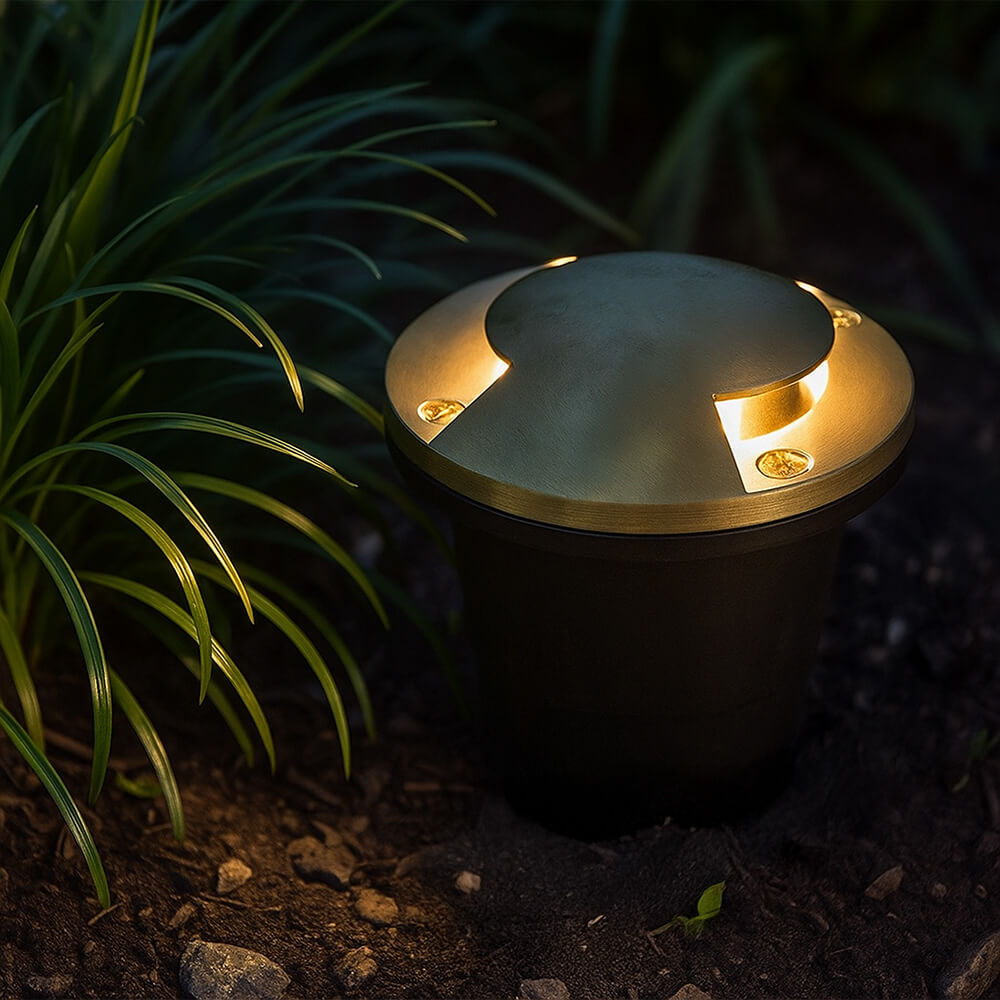

Our new bi-directional cover design is ideal for walkways and pathways that need parallel lighting. Constructed from cast brass, this cover is sure to withstand the brutal conditions of an outdoor environment won't experience rust or corrosion.
Adjustable Socket
LED ready, the PGC3B-BD in-ground well light utilizes an exclusive adjustable UL Certified JC Bi-Pin socket, which is compatible with our brand of MR11 and MR16 light bulbs.
Tool-Free Installation
With AQLighting's innovative N.S.C. (No Splice Connection) wiring system, installing the PGC3B-AS-NSC in-ground well light is a breeze. Each point of contact in the wiring system is tool-free and watertight, allowing for quick and secure connections in approximately 5 seconds. This eliminates the need for wire strippers and saves you valuable time and labor during installation. Additionally, the N.S.C. system offers the convenience of servicing your landscaping lights without having to remove the entire system, providing effortless maintenance and flexibility for your lighting project.
No Splice Connection Wiring System
Introducing the No Splice Connection System (NSC): The easiest way to illuminate your landscape! Designed for the average joe looking to enhance their outdoor space with landscape lighting, NSC saves you time and requires no knowledge of connecting wires or lighting applications. Our patented system features threaded male and female adapters, allowing you to effortlessly connect fixtures together. Say goodbye to splicing wires and hello to a simple screw-on technique! With NSC, multiple fixtures can be easily connected, thanks to our T-connector, X-connector, Jumpers, and Power Connects. Available in various lengths, our cables cater to any application. It's plug-and-play, making installation a breeze. No more exposed wires or complex installations! Experience the convenience and simplicity of NSC today. Illuminate your landscape with ease and transform your outdoor space into a stunning oasis. Upgrade to NSC and let your lights shine bright!
Voltage
Our 12V systems require a low voltage transformer.
Included
- 1x PGC3B-BD Fixture
- 1x Solid Composite Body
- 1x Bubble Glass Lens
- 1x Polished Full Cup Mirror Reflector
- 1x Adjustable Socket (Exclusive Design)
Warranty
One year limited warranty against defects in construction.
| Material | ABS Composite / Brass Cover |
| Voltage | 12V |
| Socket Type | UL Certified JC Bi-Pin (Adjustable) |
| Bulb Type | MR11 / MR16 |
| Power Rating | 35w Max |
| Mounting | In-Ground / Below Grade |
| Fixture Weight | 3.75 lbs. |
Dimensions
Frequently Asked Questions
What type of bulb requires this lamp?
This pendant light uses a universal JC BI pin socket which takes any bi pin bulb, with a pin spacing of 4 mm to 6.35 mm. A 2.5 watt MR 11, a 1.5 watt bi pin or even a 20 watt halogen MR16 bulb will fit.
Does this come with its own power cord or do I connect it to a transformer?
This fixture comes standard with a 20" whip with bare wires. For 12 volt applications, you would require a transformer. For more info, please call the AQLighting Tech department at 800-865-7221.
