Note: For longer runs, some applications may experience Voltage Drop. Click to learn more.
N.S.C. System Connection Example

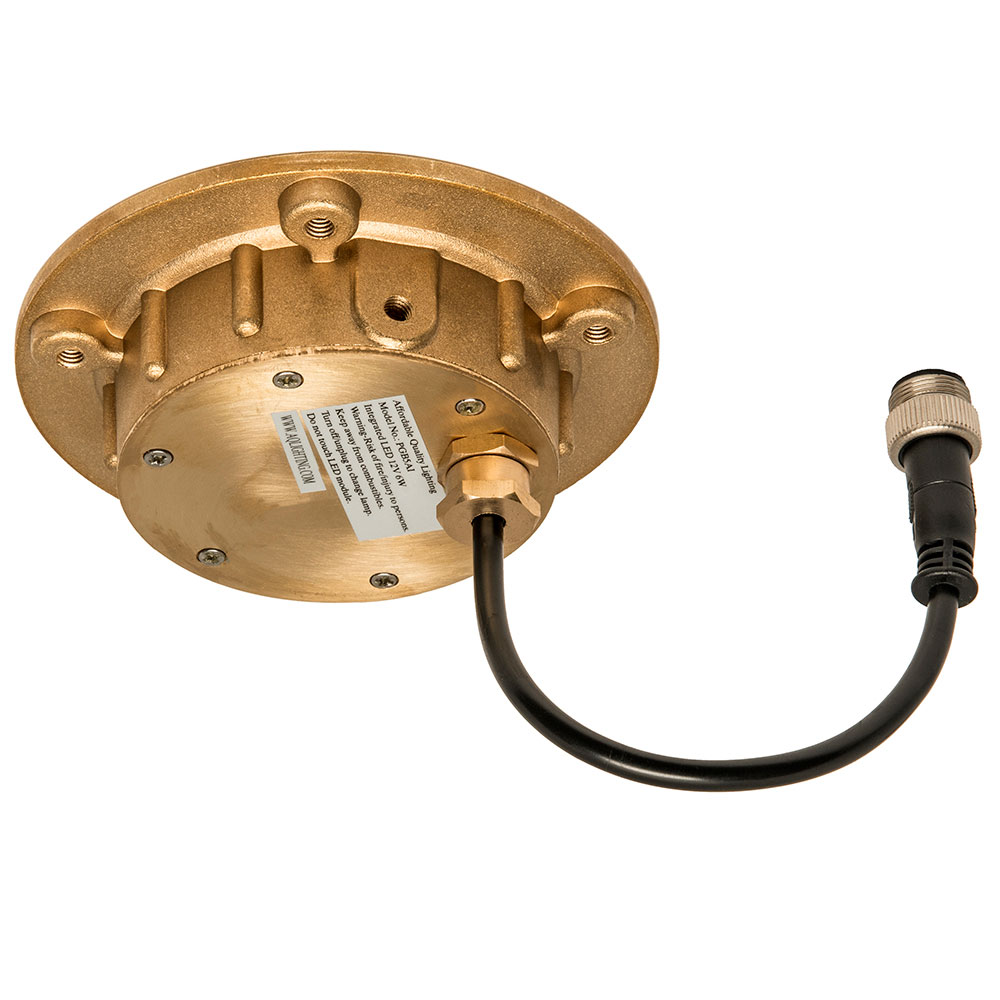

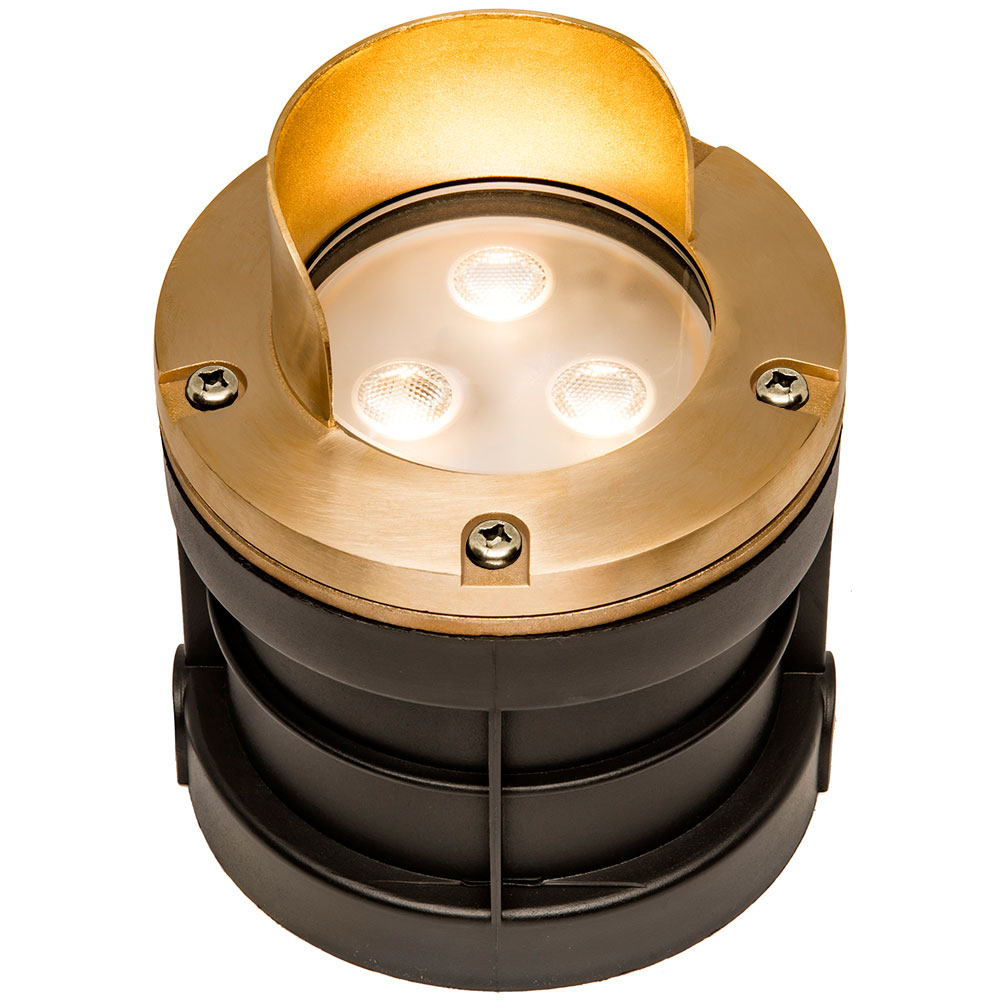

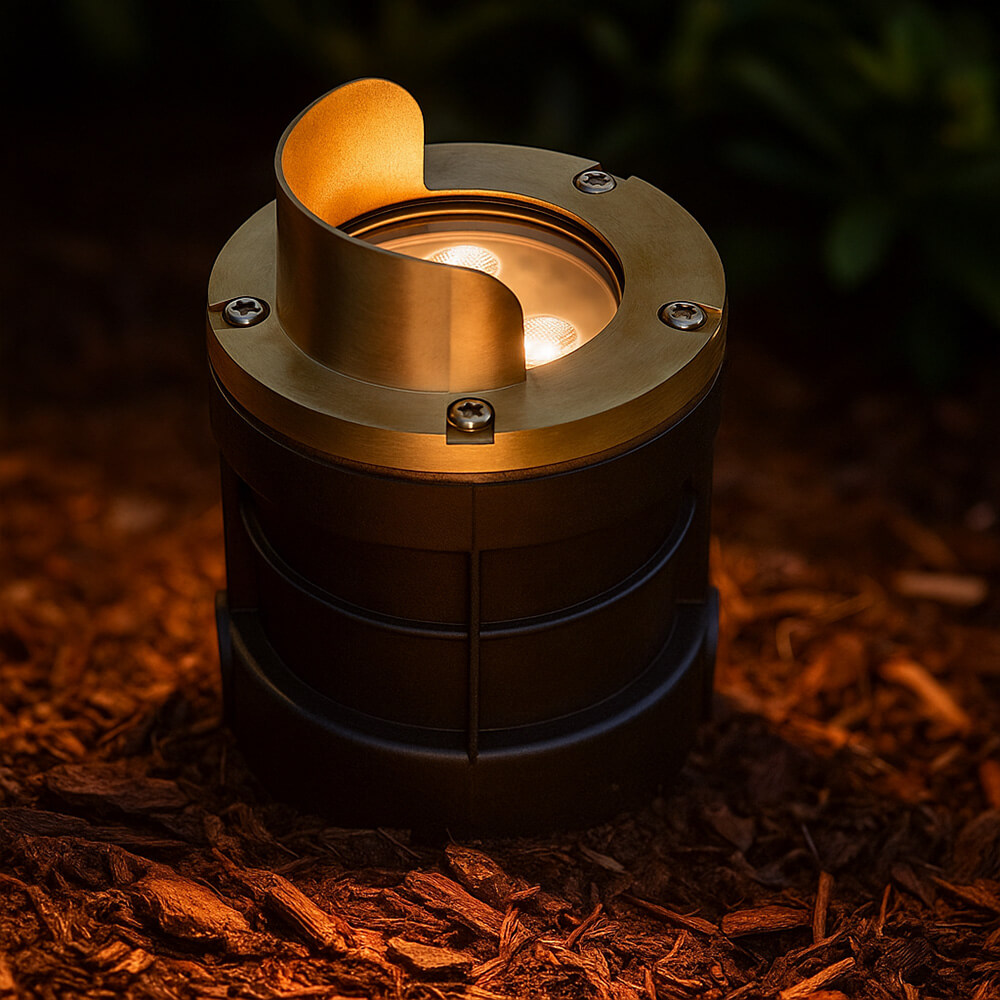

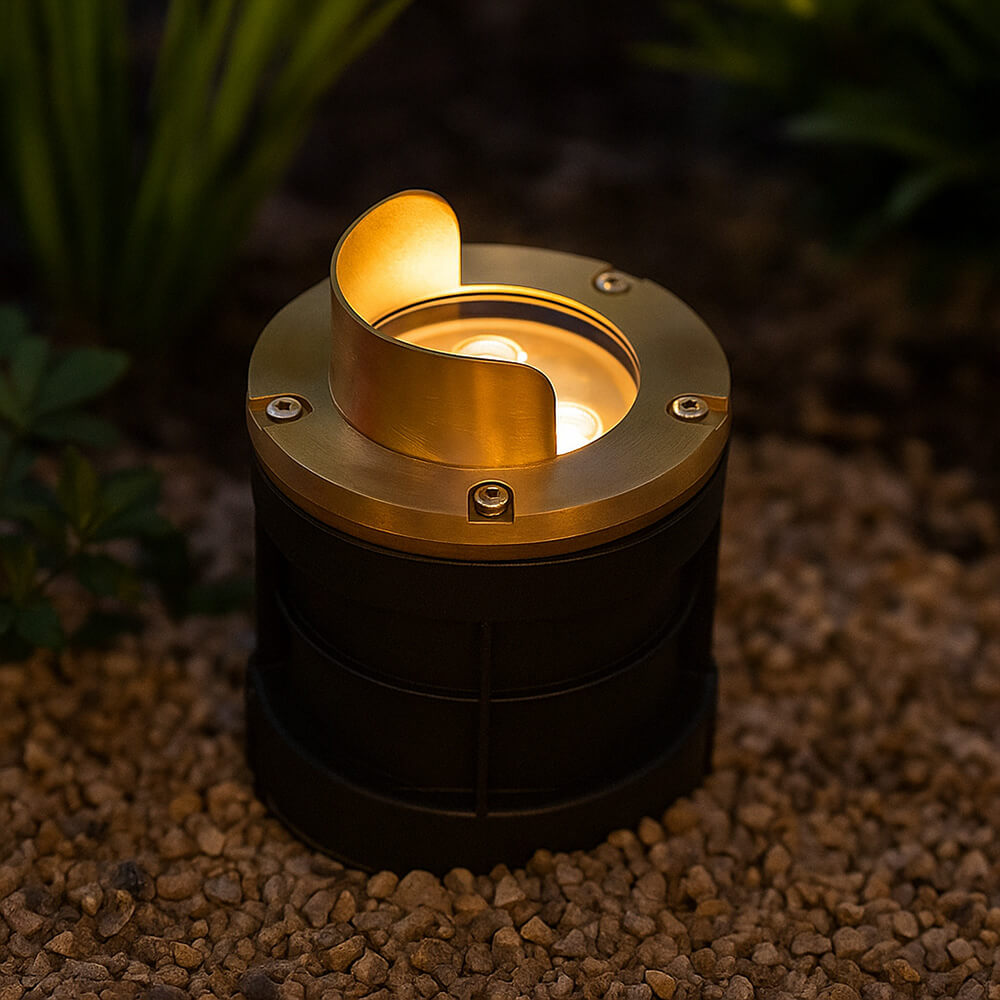

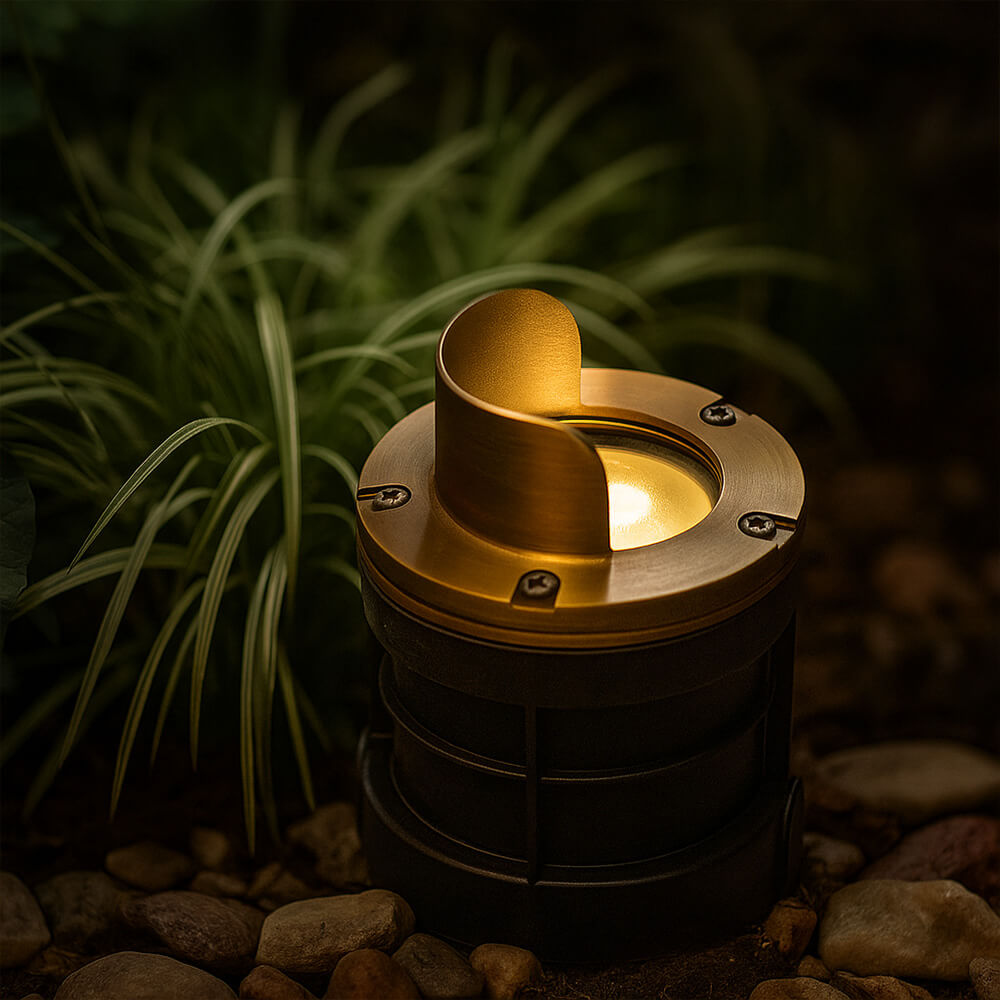

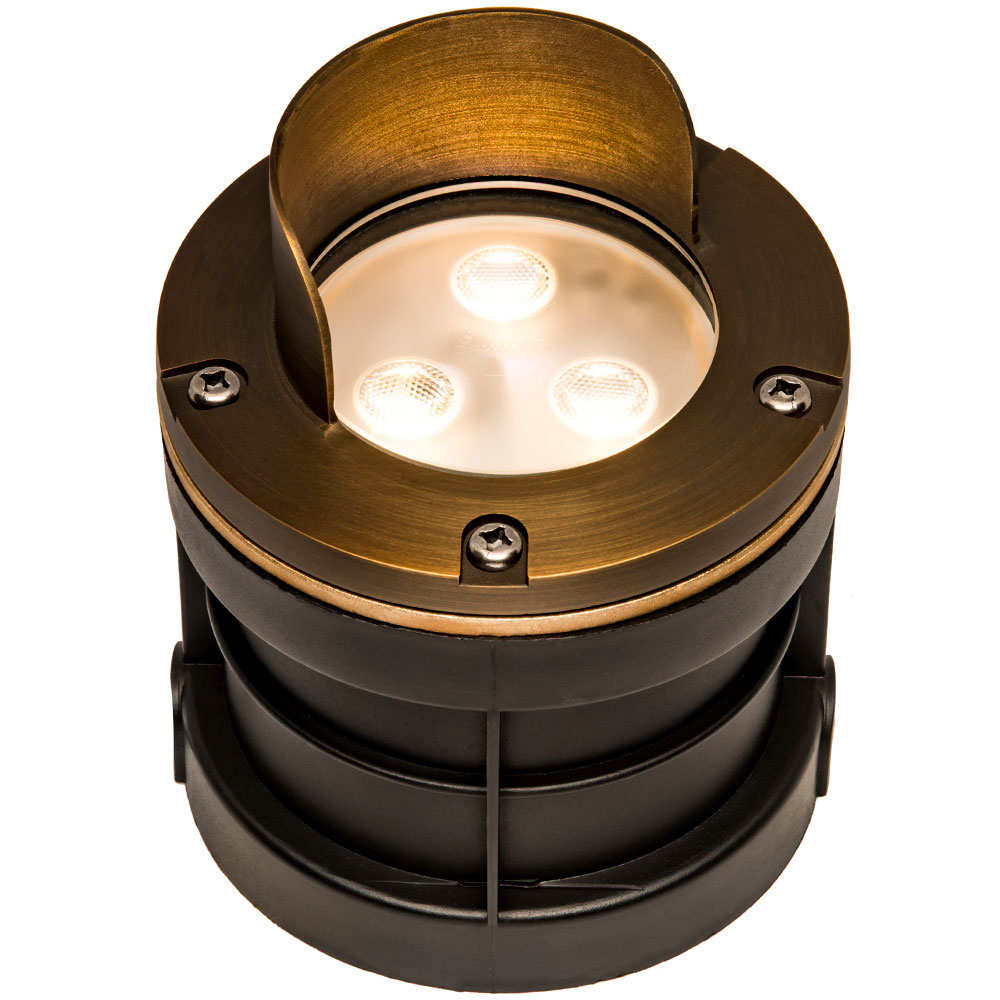

Perfect for residential and commercial outdoor lighting, this heavy duty well light features integrated LED and an angle shield cover to minimize glare without affecting light output. Crafted from solid cast brass, this in-ground well light also includes 2 new AQLighting technologies: OPTICswap and NSC. The NSC system allows no-splice, watertight connections and consistent polarity, which cuts down installation time to just a few seconds. The OPTICswap system allows you to easily change the beam spread of the light fixture on the fly. This 5" diameter LED well light is also compatible with our own concrete mounting sleeve system for sidewalk and pathway installation applications.
N.S.C. Retrofit Adapter Diagram
To retrofit this fixture to your existing lighting setup, simply use our retrofit adapter (available as additional option) and you can easily connect your new fixture without splicing any wires, saving you a lot of time during installation!
Innovative No Splice Connect (NSC™) Wiring
- Using the new and innovative NSC™ technology which eliminates the need for time consuming wire splicing during installation, you can have these fixtures up and running in just one short afternoon.
- Simply connect the fixtures to a power source using the NSC™ cables and it's ready for operation.
- With the male-to-female adaptor, you can connect multiple fixtures to work together without the need for cutting or splicing wires.
Integrated LED
- Integrated LED eliminates the need for maintenance on your fixtures.
- LED consumes up to 80% less energy than the standard incandescent equivalent and lasts years longer.
- With the OPTICSwap system, easily change the beam spread for your integrated light to 30° or 60°.

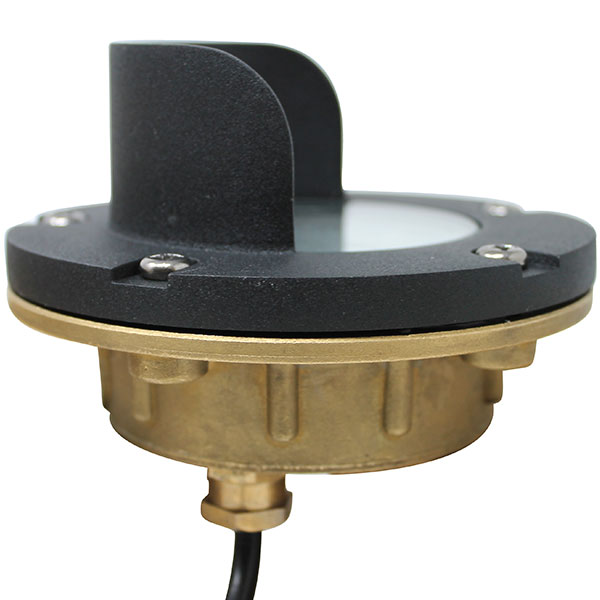

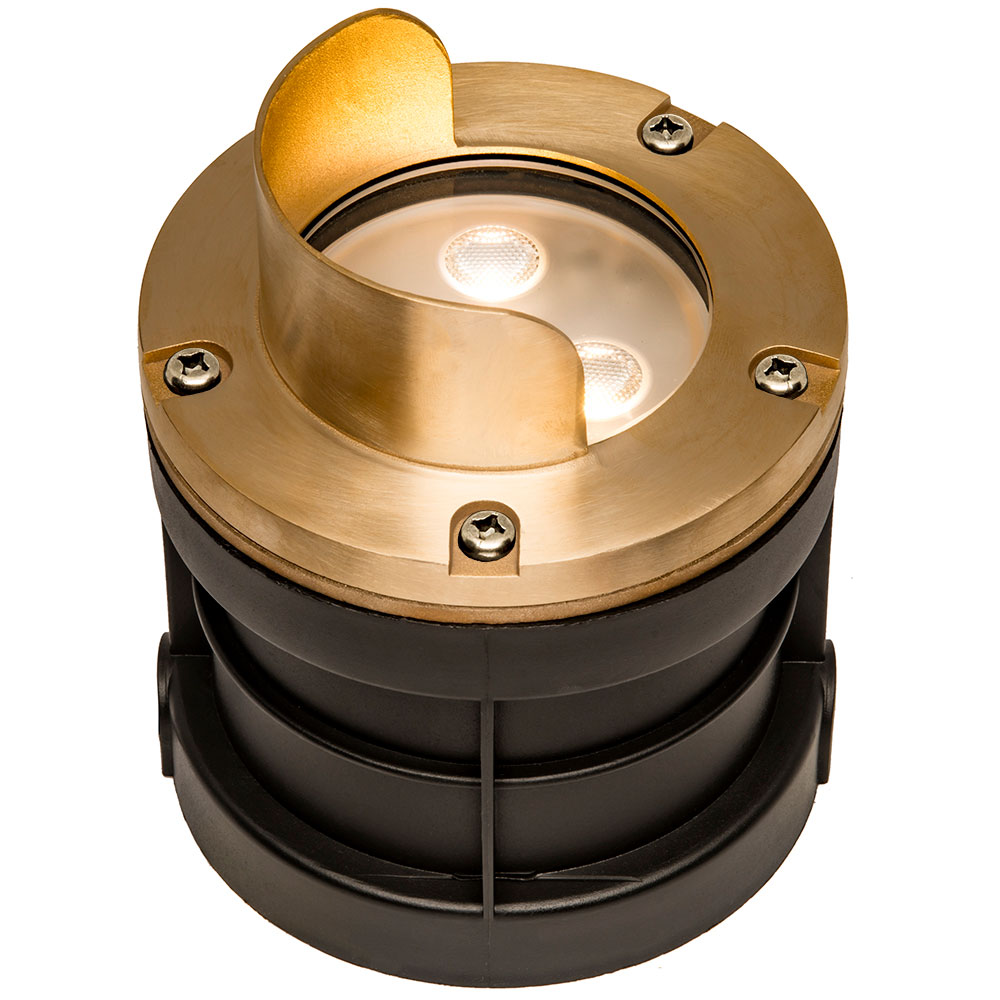

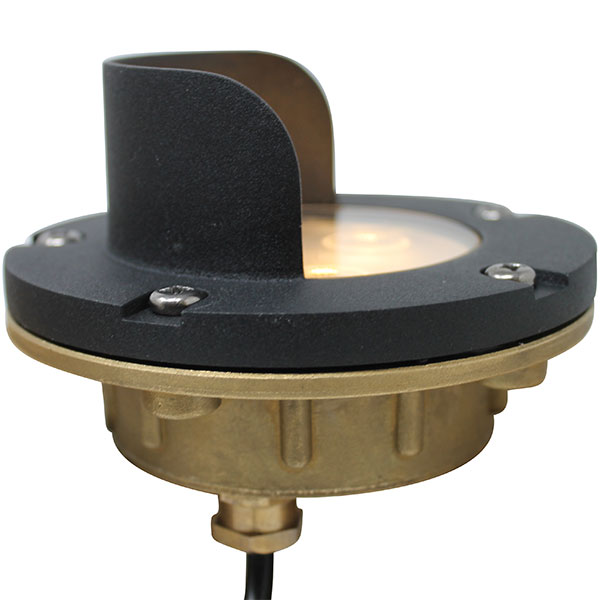

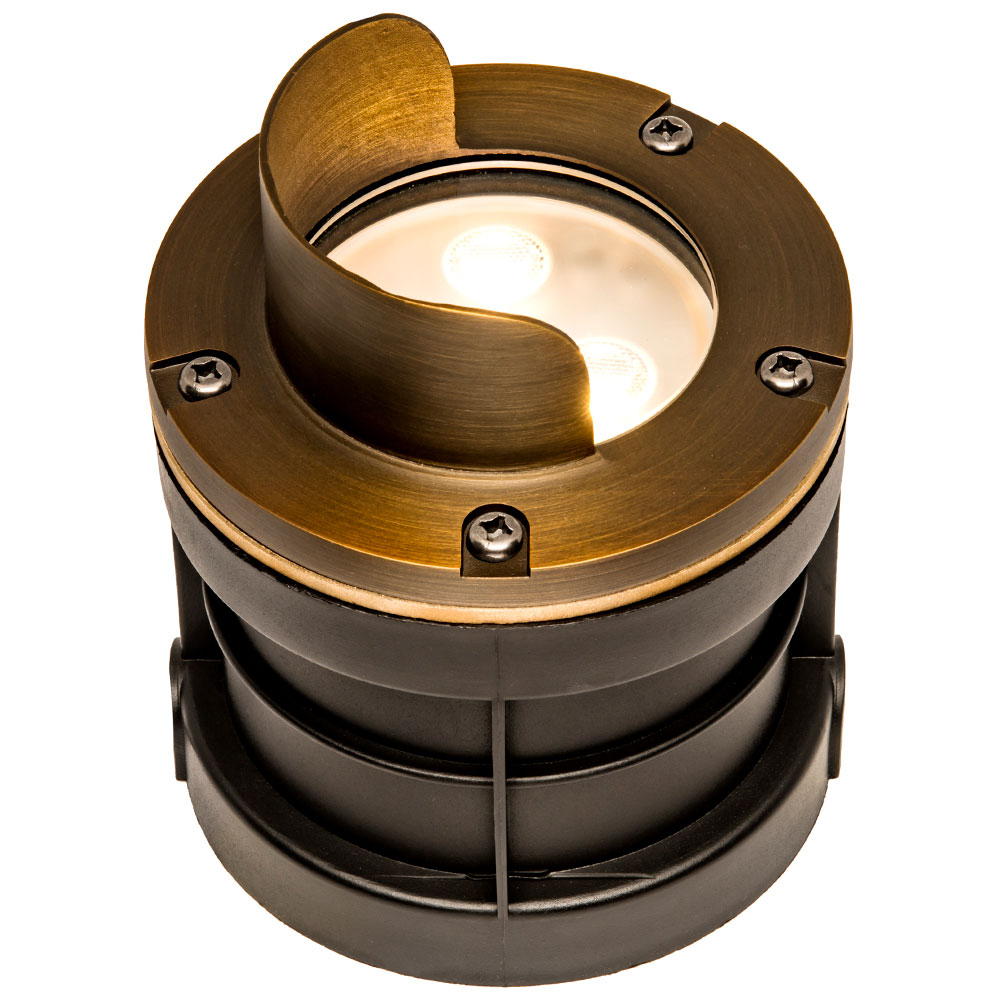

Glare Shield Cast Brass Cover
- The Glare Shield cover provides added protection for your lighting fixture while reducing the glare, removing any distractions from what you are illuminating.
- These cast brass covers are rust & corrosion resistant and designed to last a lifetime perfect for patios, gardens and more.

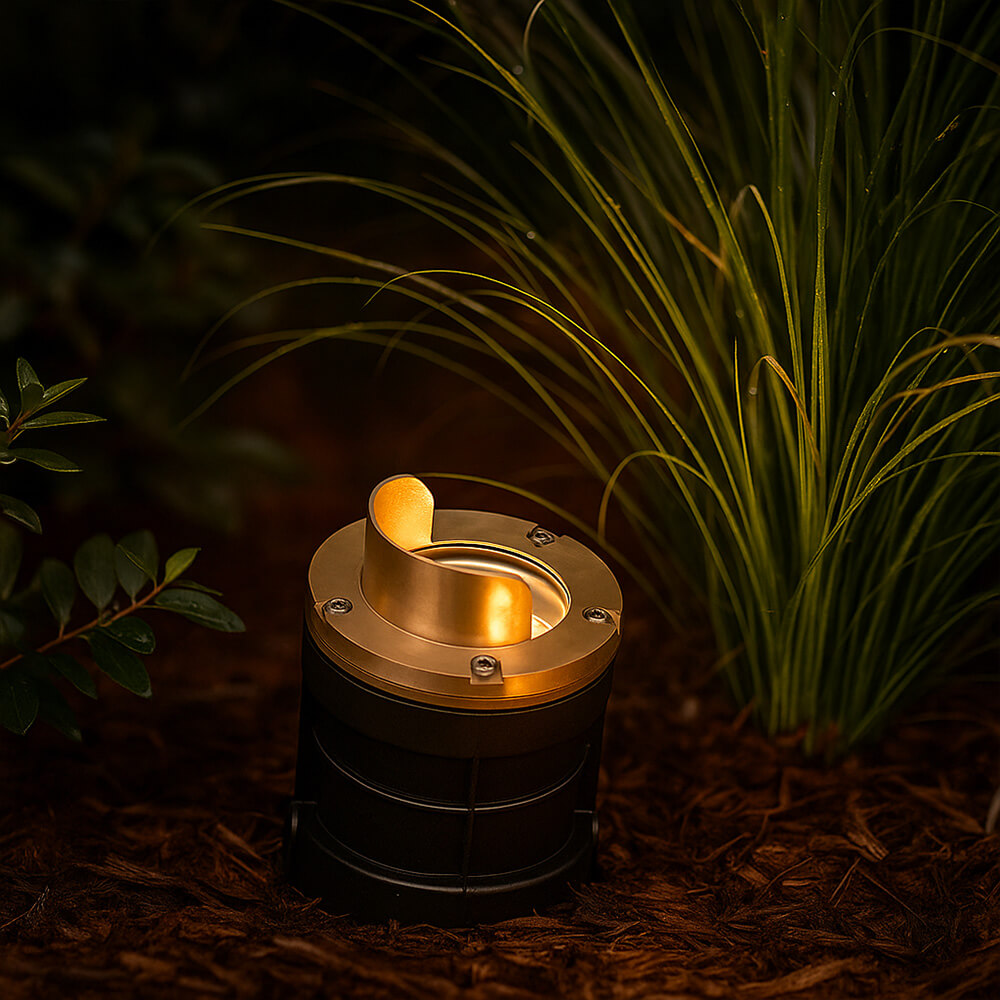

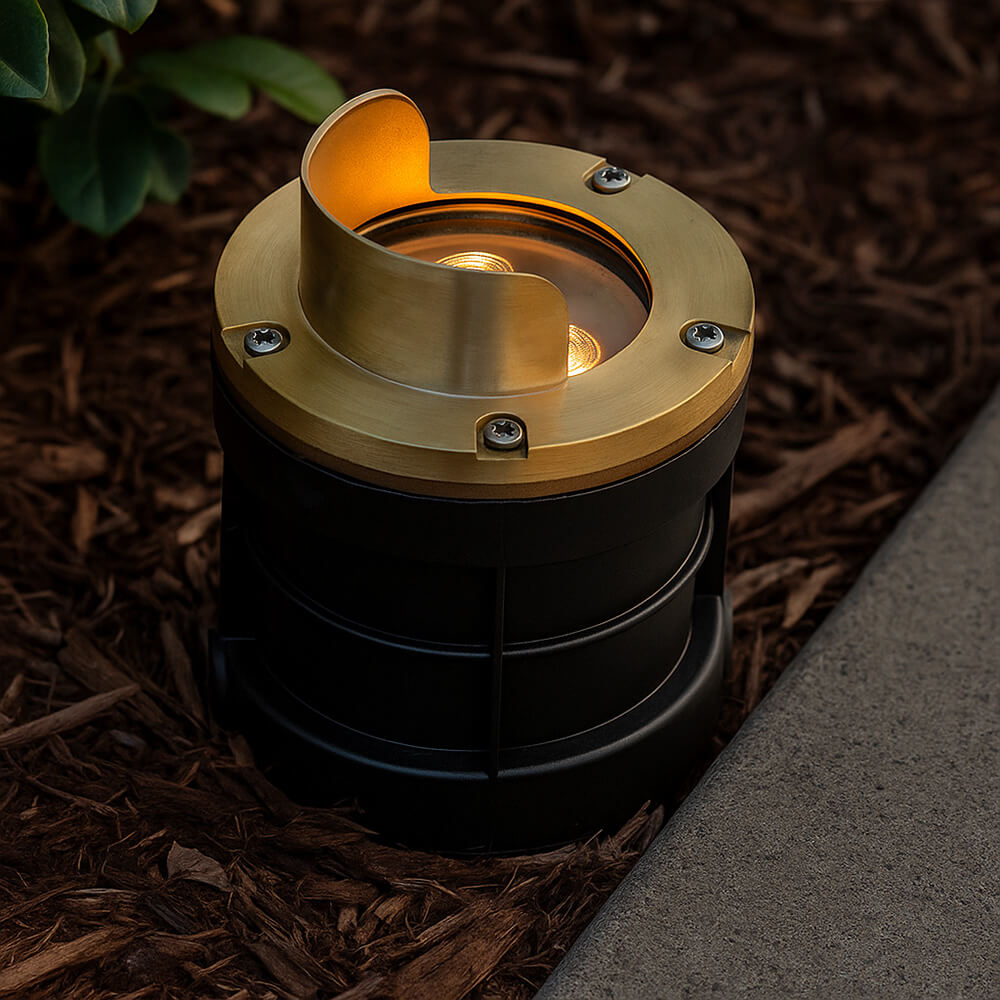

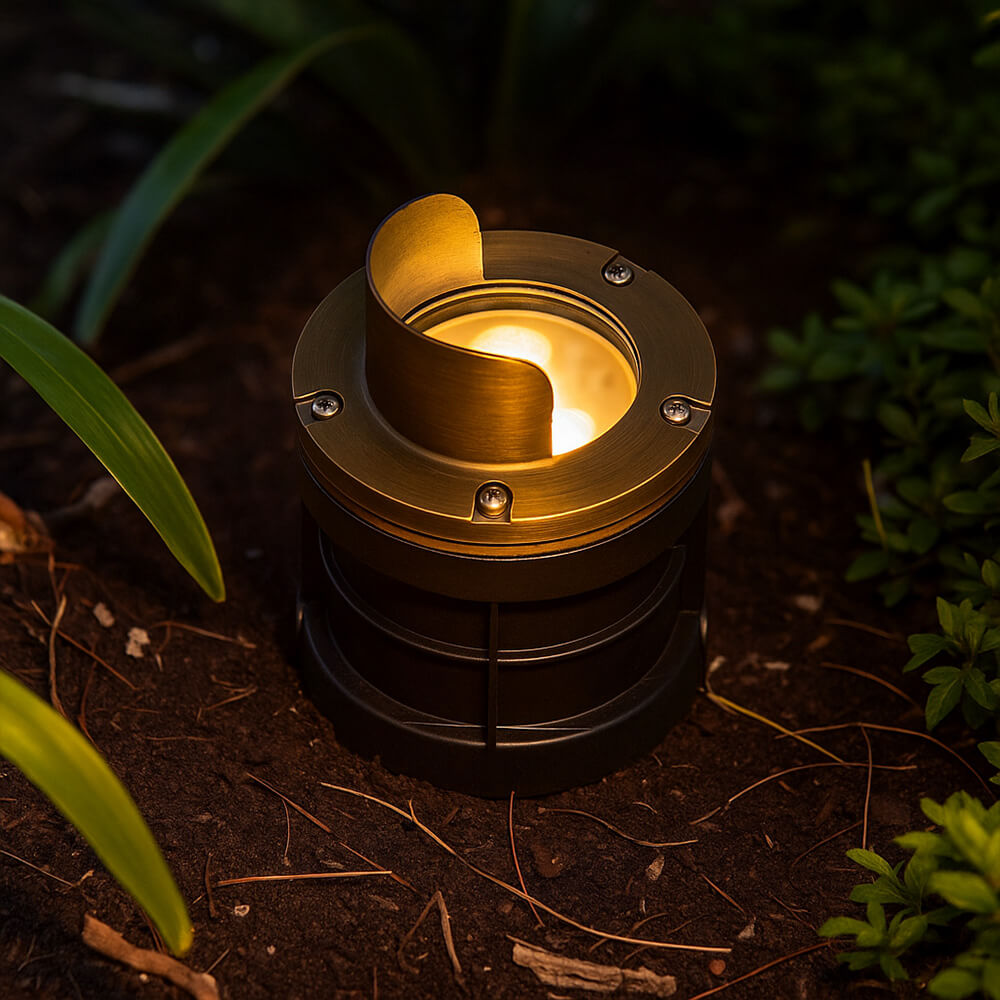

- Run a few of these together to create a mesmerizing light pattern perfect for illuminating a wide variety of landscape areas.
- 1x PGB5I LED In Ground Well Light Fixture
- 1x OPTICswap 35° Beam Angle Lens
- 1x OPTICswap 60° Beam Angle Lens
| Material | Cast Brass |
| Voltage | 12V AC / DC |
| Socket Type | N/A |
| Bulb Type | Integrated LED |
| Power Draw | 6w Max |
| Light Output | 500 Lumens |
| Color Temperature | Warm White 2700K |
| Beam Spread | 35° / 60° |
| Dimming Capacity | Full Range |
| Cable Lead | 1' w/ NSC Male Connection |
| Dimensions | 4-15/16" O.D. X 2-1/4" Height |
Specification Sheet Download
Dimensions
Product Showcase - PGB5I
Tree Uplighting Demonstration
