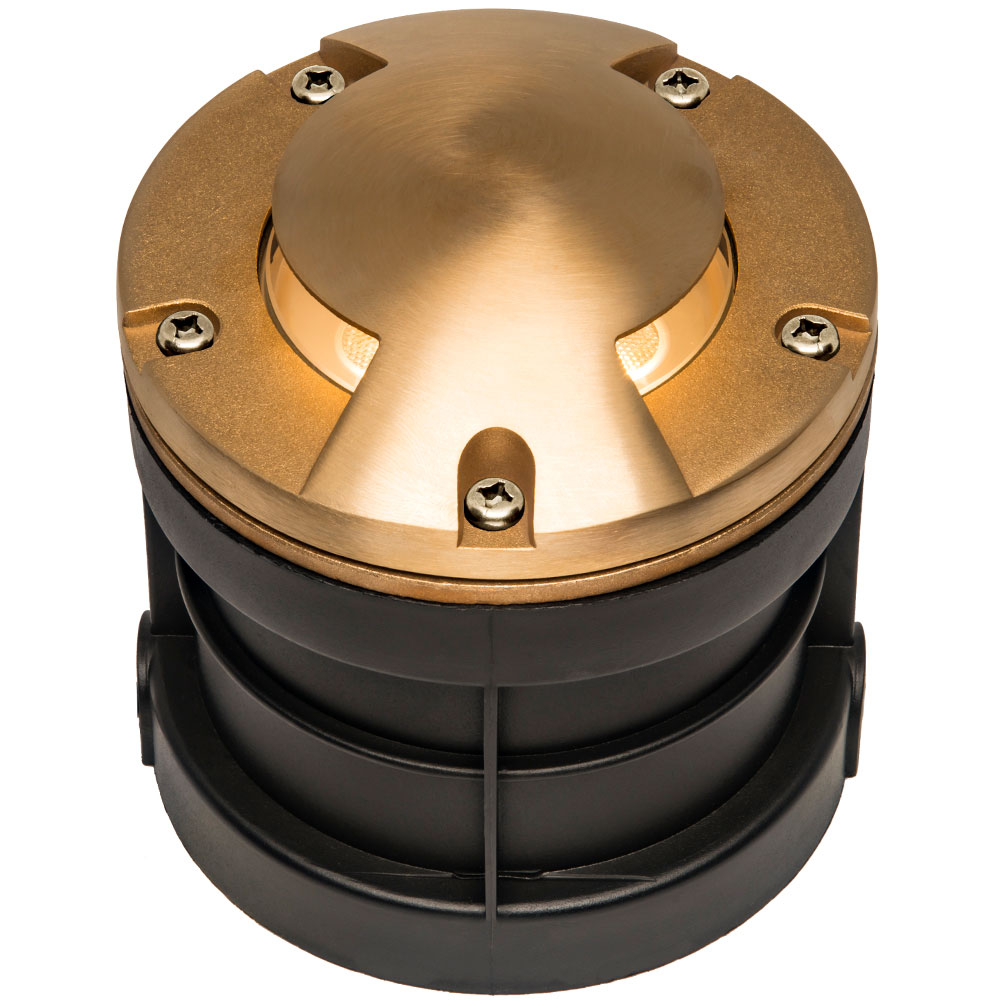

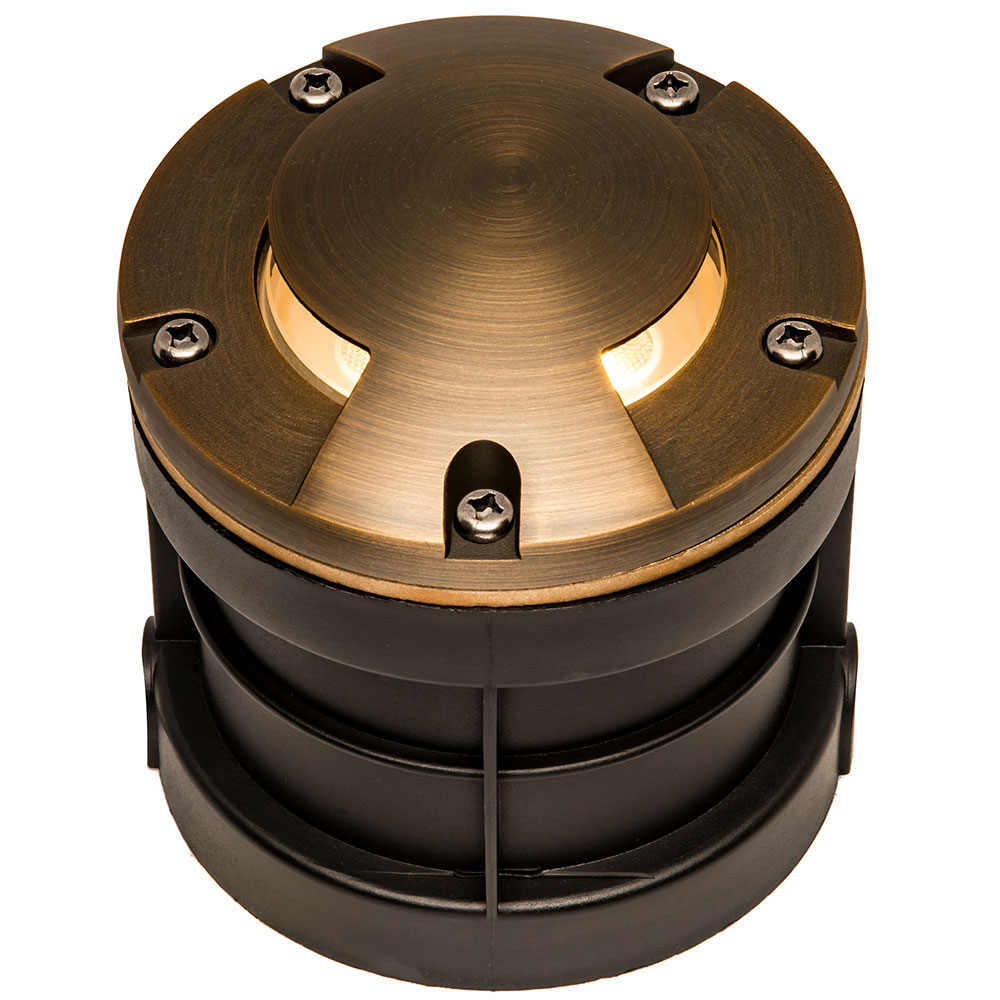

12V 6W Cast Brass Bi-Directional Cover Integrated LED Outdoor In-Ground Well Light - 5" Diameter - OIGL-5I-MR2

Raw Brass Well Light Cover
product detail banner

12V 6W Cast Brass Bi-Directional Cover Integrated LED Outdoor In-Ground Well Light - 5" Diameter - OIGL-5I-MR2

SKU:
OIGL-5I-MR2
Weight:
2.30 LBS
Finish::
Black
Finish::
Bronze
Finish::
Raw Brass
Material::
Brass
Voltage::
12V
Light Position::
Fixed
Fixture Quantity required
# of 3FT Jumpers
# of 6FT Jumpers
# of 15FT Jumpers
# of 30FT Jumpers
# of 3FT Power Connectors
# of 6FT Power Connectors {{AQGPCL-LT3}}
# of 15FT Power Connectors
# of 30FT Power Connectors
# of T Connectors
# of X Connectors required
$48.98
product detail banner mobile

Note: For longer runs, some applications may experience Voltage Drop. Click to learn more.

N.S.C. System Connection Example

NSC Wiring System Connection Sample

The cutting edge was never more accessible with this cast brass outdoor in ground light featuring integrated LEDs and bi-directional cover available in bronze, black and raw brass finish. Constructed from solid cast brass, this heavy duty in-ground lighting is as tough as they come, perfect for both commercial and residential lighting applications. The LED panel is highly efficient, using just 6 watts of energy, fully dimmable and features 2 new AQLighting technologies: OPTICswap system allows to you ability to change the beam spread of the light fixture on the fly and the NSC (no splice connect) system allows for splice-free, polarity consistent, and watertight connections, cutting install time down to seconds and the. This 5" diameter LED well light is also compatible with our own concrete mounting sleeve system for sidewalk and pathway installation applications.

N.S.C. Retrofit Adapter Diagram

NSC Retrofit Wiring Diagram

To retrofit this fixture to your existing lighting setup, simply use our retrofit adapter (available as additional option) and you can easily connect your new fixture without splicing any wires, saving you a lot of time during installation!

NSC Wiring

Innovative No Splice Connect (NSC™) Wiring

  • Using the new and innovative NSC™ technology which eliminates the need for time consuming wire splicing during installation, you can have these fixtures up and running in just one short afternoon.
  • Simply connect the fixtures to a power source using the NSC™ cables and it's ready for operation.
  • With the male-to-female adaptor, you can connect multiple fixtures to work together without the need for cutting or splicing wires.
Adjustable Integrated LED

Integrated LED

  • Integrated LED eliminates the need for maintenance on your fixtures.
  • LED consumes up to 80% less energy than the standard incandescent equivalent and lasts years longer.
  • With the OPTICSwap system, easily change the beam spread for your integrated light to 30° or 60°.
2-Way Cast Brass Cover

Bi-Directional Cast Brass Cover

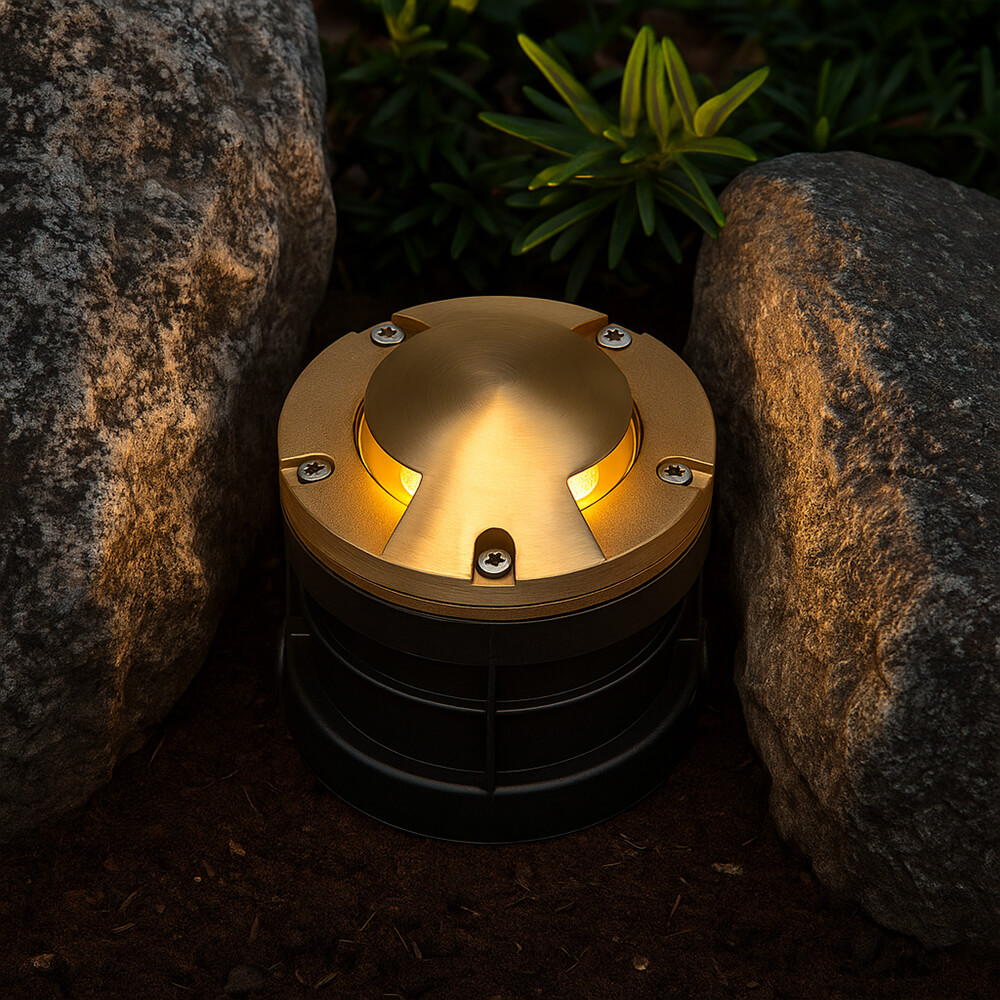

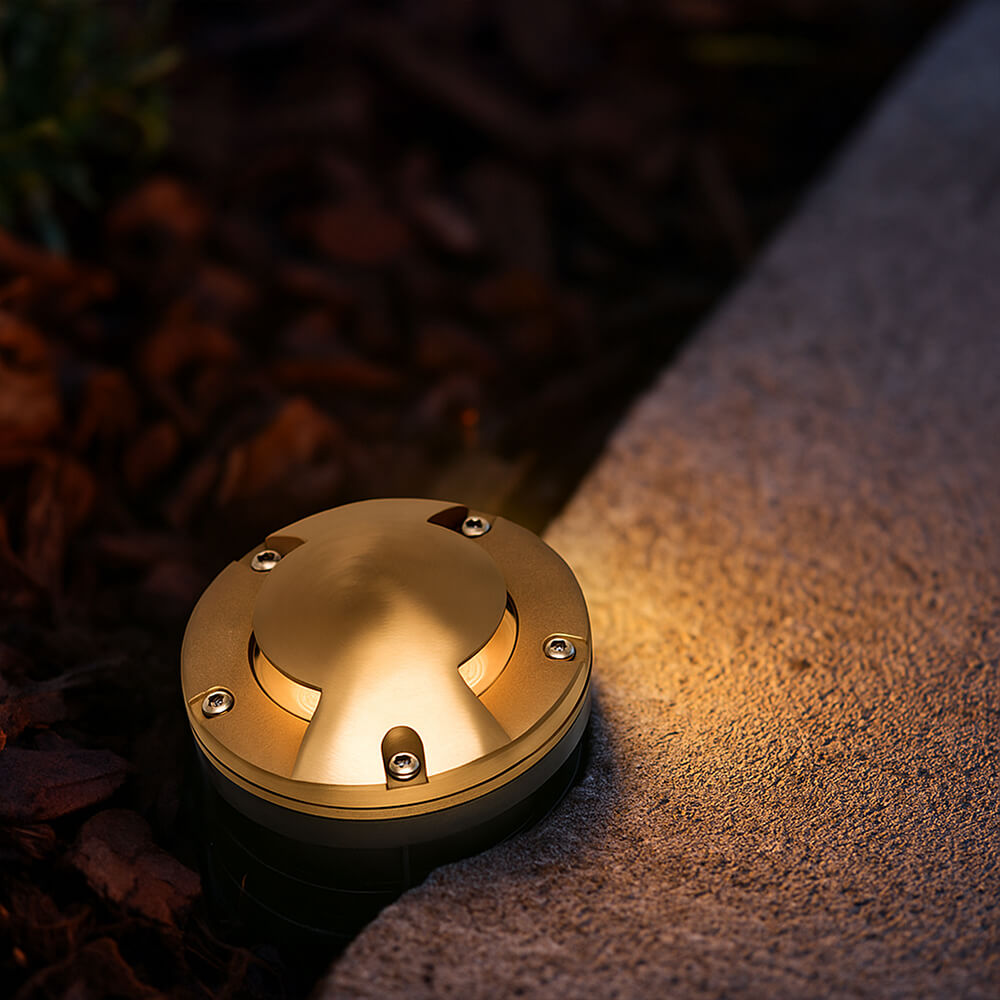

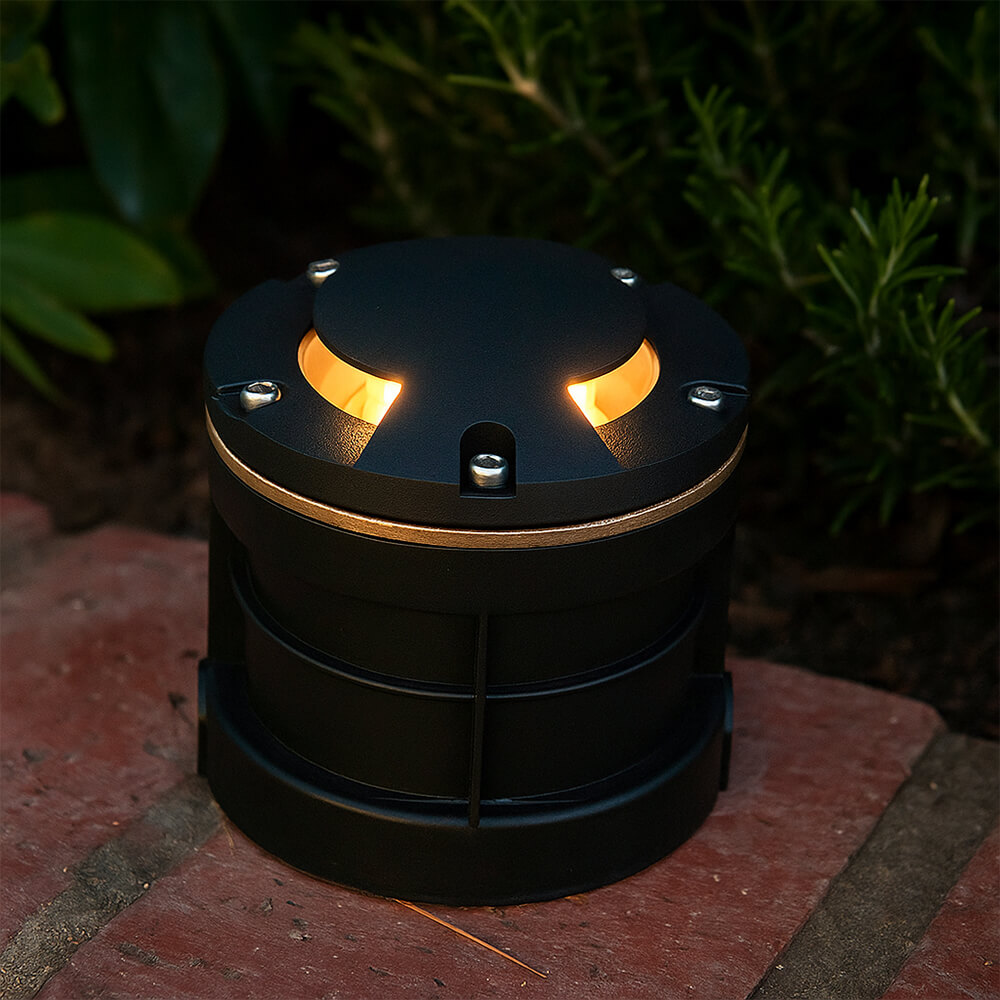

  • Featuring a bi-directional cover, this LED well light is designed for outdoor accent or mood lighting, perfect for patios, gardens and more.
  • The 2-way cover splits light to opposing directions, creating a beautiful beams of light.
  • Run a few of these together to create a mesmerizing light pattern perfect for illuminating a wide variety of landscape areas.
Included:
  • 1x PGB5I LED In Ground Well Light Fixture
  • 1x OPTICswap 35° Beam Angle Lens
  • 1x OPTICswap 60° Beam Angle Lens
Material Cast Brass
Voltage 12V AC / DC
Socket Type N/A
Bulb Type Integrated LED
Power Draw 6w Max
Light Output 500 Lumens
Color Temperature Warm White 2700K
Beam Spread 35° / 60°
Dimming Capacity Full Range
Cable Lead 1' w/ NSC Male Connection
Dimensions 4-15/16" O.D. X 2-1/4" Height
NSC Wiring

Innovative No Splice Connect (NSC™) Wiring

  • Using the new and innovative NSC™ technology which eliminates the need for time consuming wire splicing during installation, you can have these fixtures up and running in just one short afternoon.
  • Simply connect the fixtures to a power source using the NSC™ cables and it's ready for operation.
  • With the male-to-female adaptor, you can connect multiple fixtures to work together without the need for cutting or splicing wires.
Adjustable Integrated LED

Integrated LED

  • Integrated LED eliminates the need for maintenance on your fixtures.
  • LED consumes up to 80% less energy than the standard incandescent equivalent and lasts years longer.
  • With the OPTICSwap system, easily change the beam spread for your integrated light to 30° or 60°.
