Note: For longer runs, some applications may experience Voltage Drop. Click to learn more.
N.S.C. System Connection Example

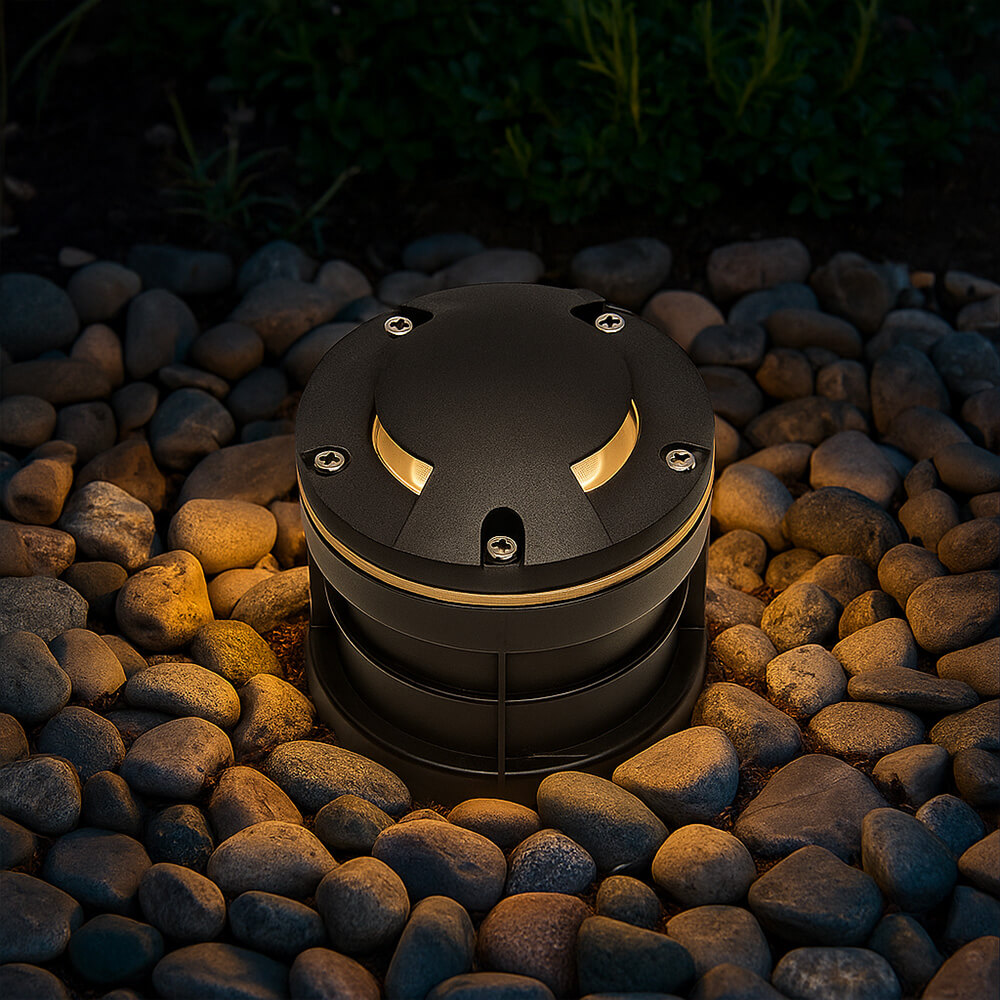

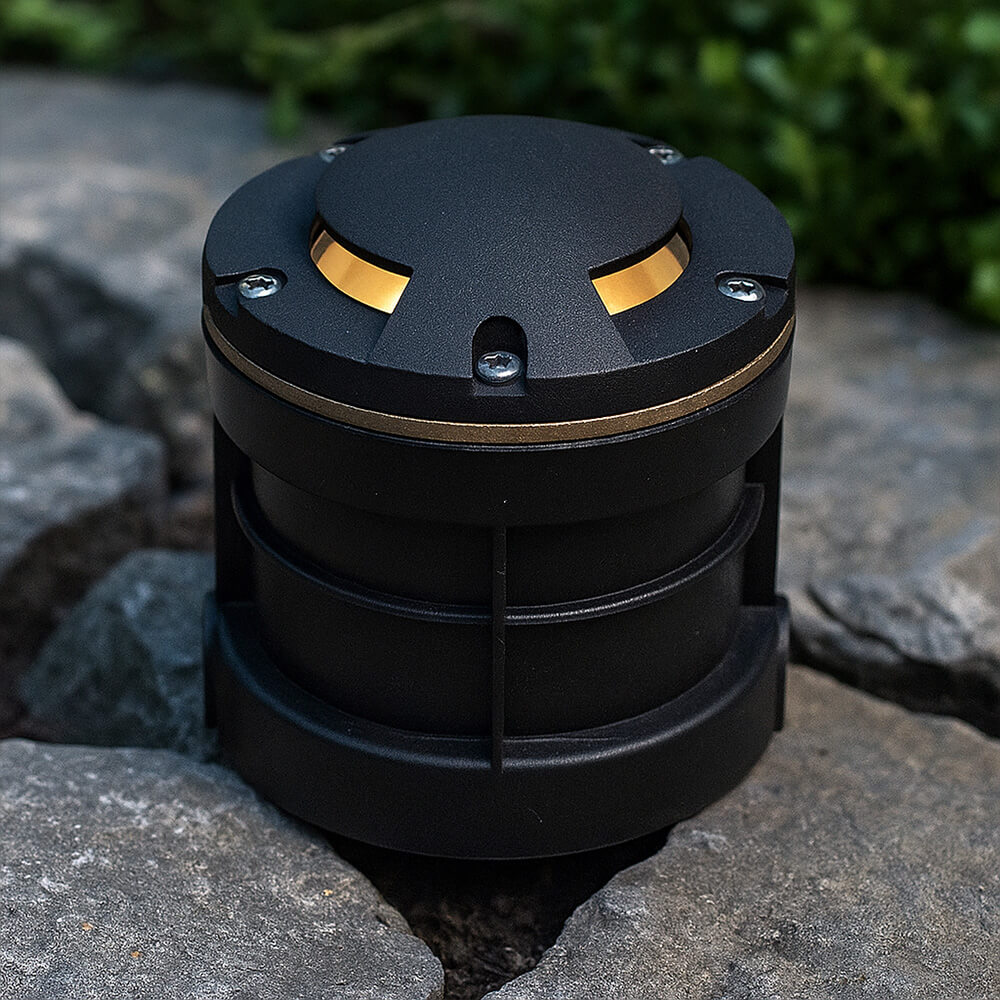

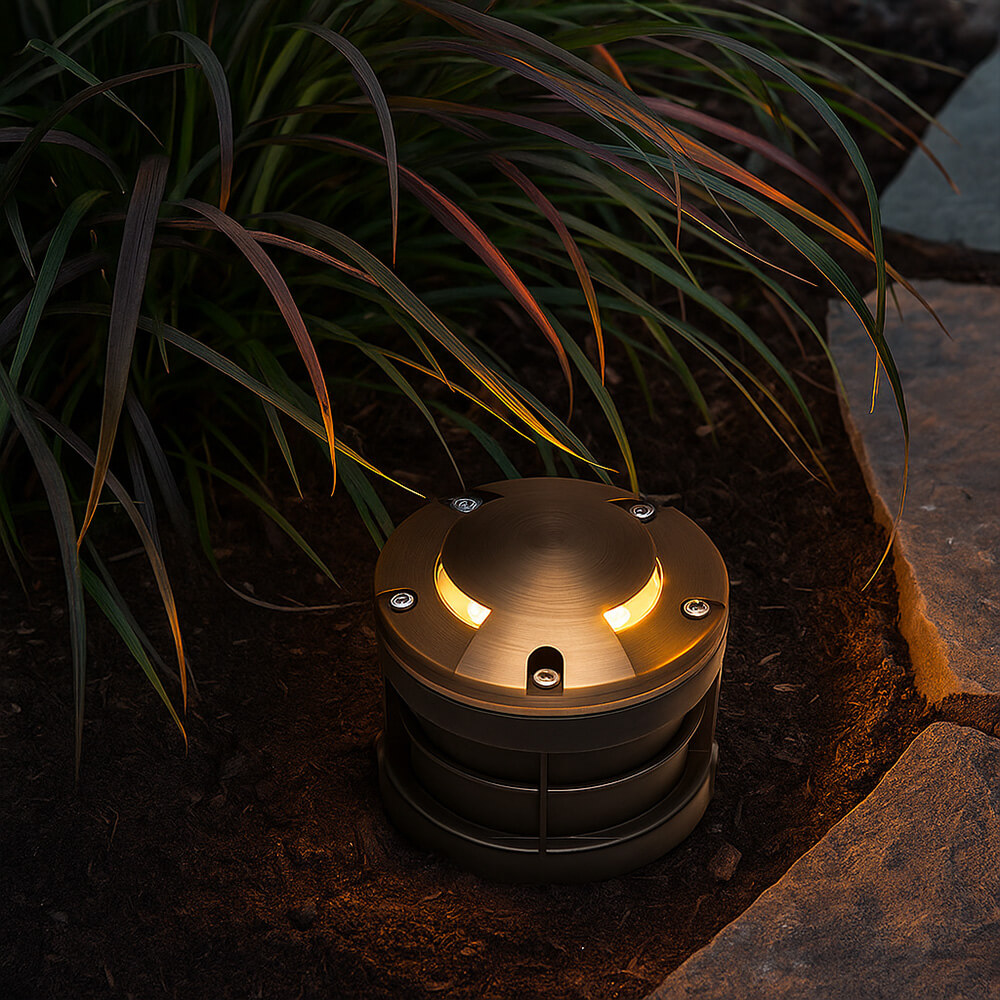

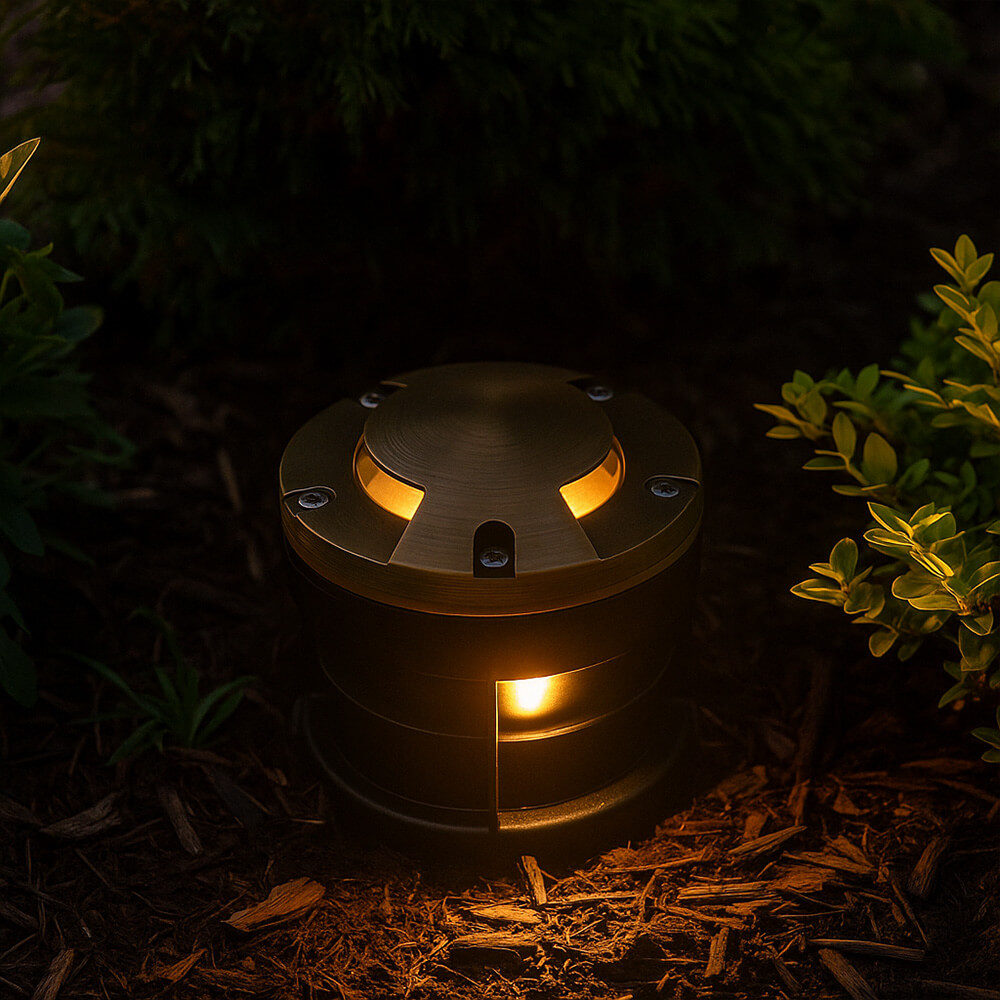

Crafted from solid cast brass, this highly durable in-ground lighting is perfect for both commercial and residential lighting applications. Available in bronze, black, and raw brass finish, this heavy duty in-ground light features integrated LEDs and a tri-directional cover. The highly efficient LED panel uses only 6 watts of energy and is fully dimmable. This LED well light is also compatible with our concrete mounting sleeve system for all your sidewalk and pathway installation needs.
N.S.C. Retrofit Adapter Diagram
To retrofit this fixture to your existing lighting setup, simply use our retrofit adapter (available as additional option) and you can easily connect your new fixture without splicing any wires, saving you a lot of time during installation!
Integrated LED
- Integrated LED eliminates the need for maintenance on your fixtures.
- LED consumes up to 80% less energy than the standard incandescent equivalent and lasts years longer.
- With the OPTICSwap system, easily change the beam spread for your integrated light to 30° or 60°.

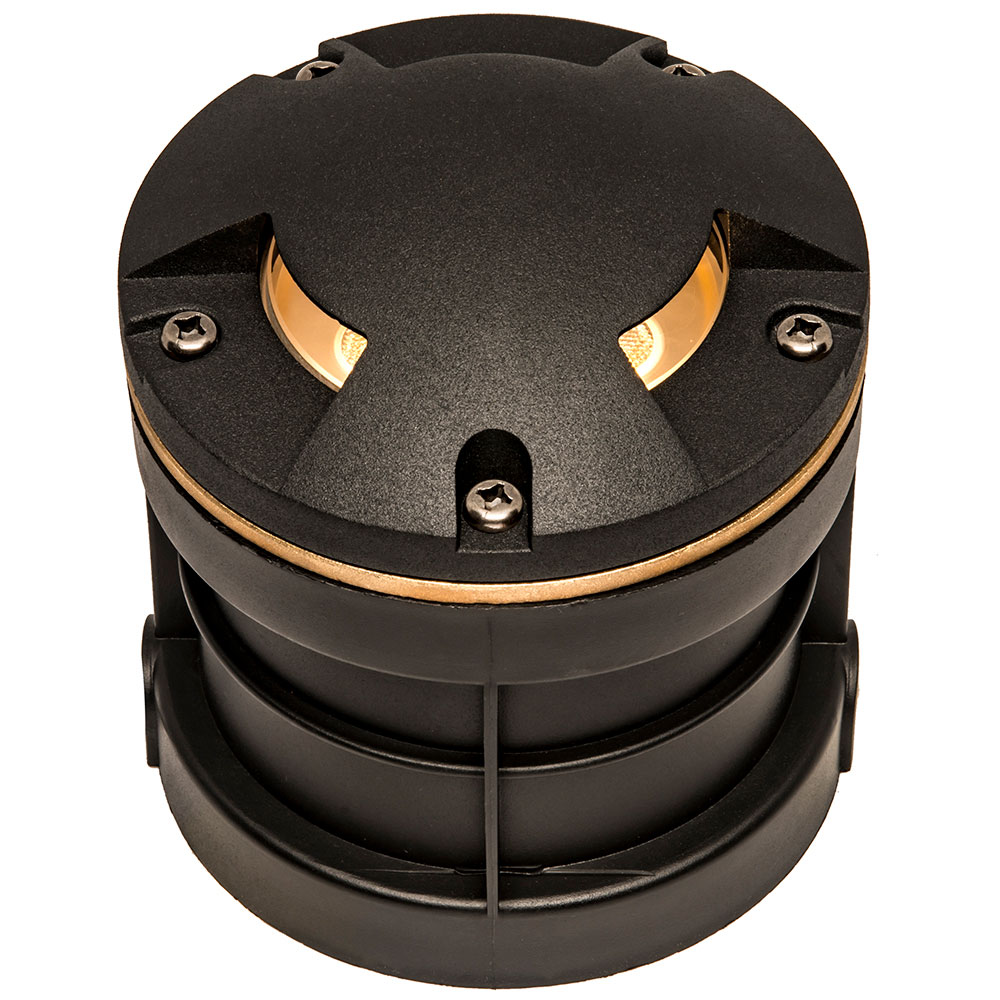

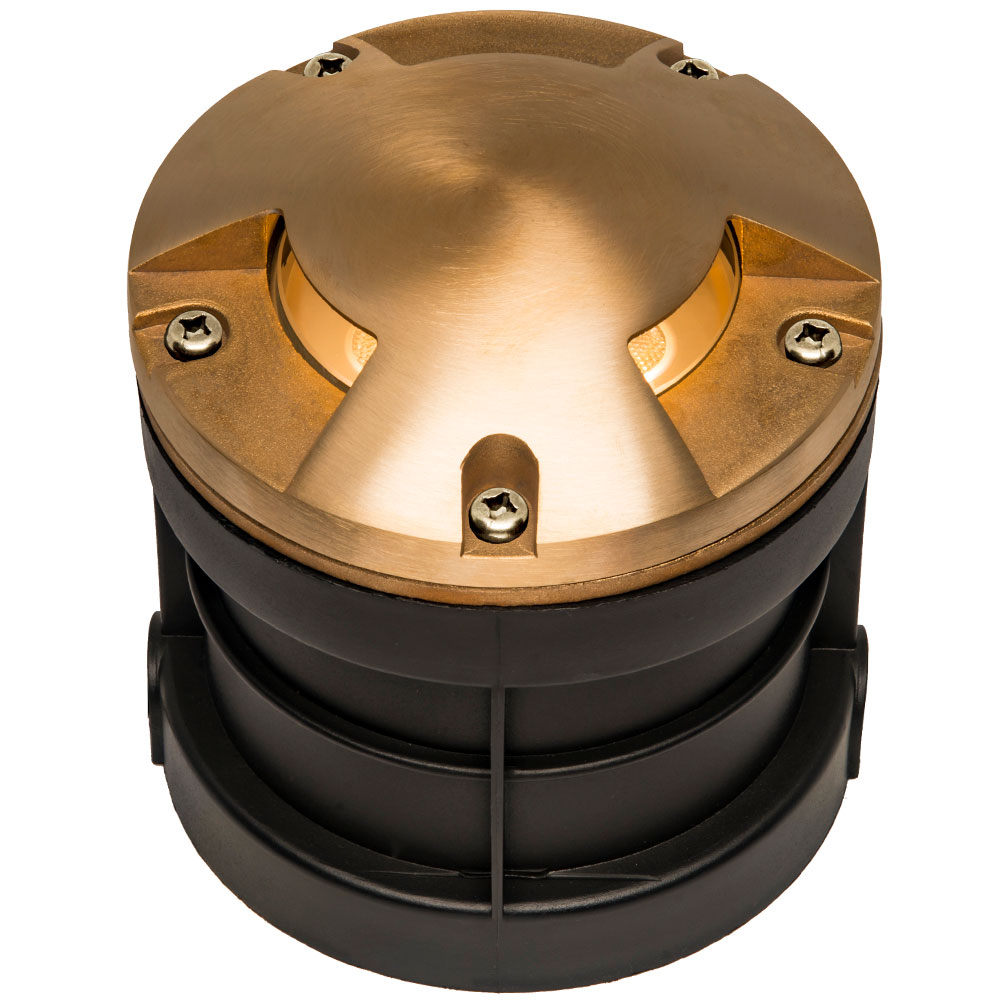

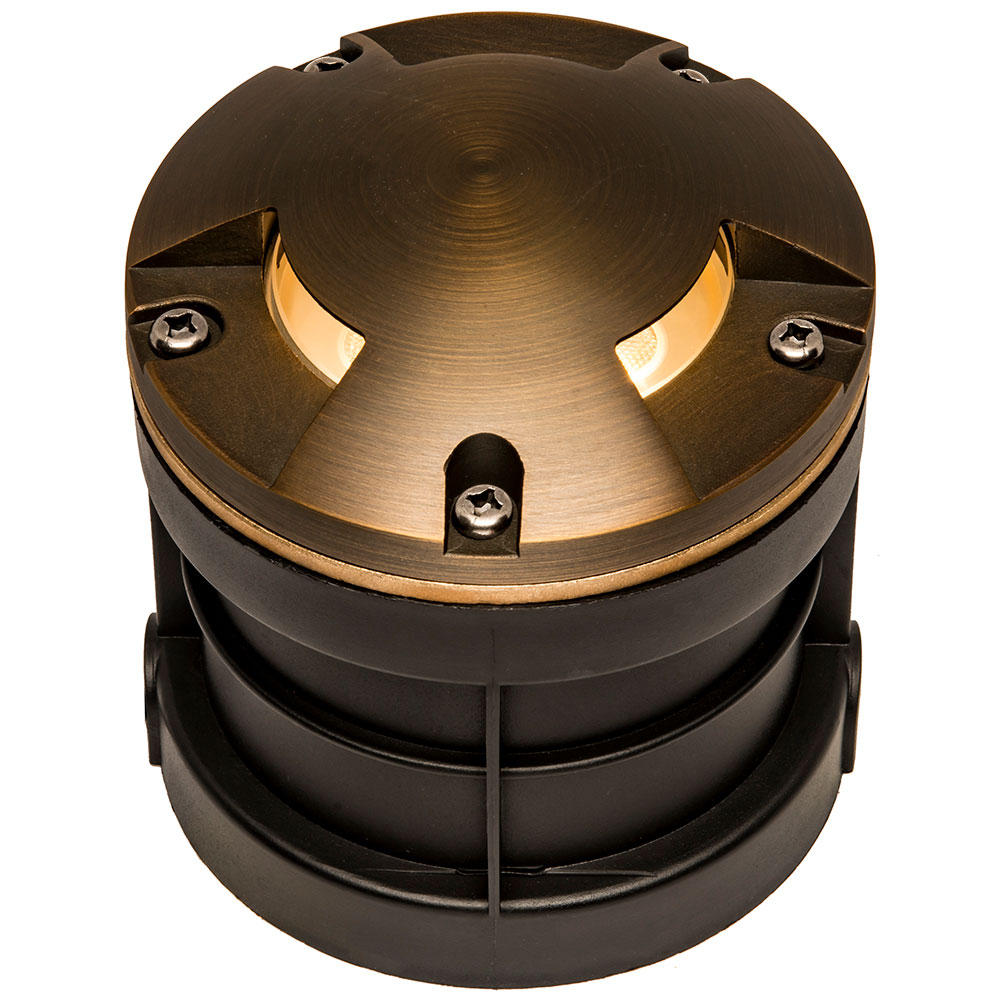

Tri-Directional Cast Brass Cover
- A tri-directional or 3-way cover spreads the light output evenly to 3 different angles which creates an eye catching soft glow, perfect for accent or mood lighting.
- These cast brass covers are rust & corrosion resistant and designed to last a lifetime perfect for patios, gardens and more.
- The 3-way cover splits light to opposing directions, creating a beautiful beams of light.
- Run a few of these together to create a mesmerizing light pattern perfect for illuminating a wide variety of landscape areas.
No Splice Connection Wiring System
Introducing the No Splice Connection System (NSC): The easiest way to illuminate your landscape! Designed for the average joe looking to enhance their outdoor space with landscape lighting, NSC saves you time and requires no knowledge of connecting wires or lighting applications. Our patented system features threaded male and female adapters, allowing you to effortlessly connect fixtures together. Say goodbye to splicing wires and hello to a simple screw-on technique! With NSC, multiple fixtures can be easily connected, thanks to our T-connector, X-connector, Jumpers, and Power Connects. Available in various lengths, our cables cater to any application. It's plug-and-play, making installation a breeze. No more exposed wires or complex installations! Experience the convenience and simplicity of NSC today. Illuminate your landscape with ease and transform your outdoor space into a stunning oasis. Upgrade to NSC and let your lights shine bright!
- 1x PGB5I LED In Ground Well Light Fixture
- 1x OPTICswap 35° Beam Angle Lens
- 1x OPTICswap 60° Beam Angle Lens
| Material | Cast Brass |
| Voltage | 12V AC / DC |
| Socket Type | N/A |
| Bulb Type | Integrated LED |
| Power Draw | 6w Max |
| Light Output | 500 Lumens |
| Color Temperature | Warm White 2700K |
| Beam Spread | 35° / 60° |
| Dimming Capacity | Full Range |
| Cable Lead | 1' w/ NSC Male Connection |
| Dimensions | 4-15/16" O.D. X 2-1/4" Height |
Specification Sheet Download
Dimensions
NSC Installation Guide
Intro to NSC (No Splice Connection) Systems
Product Showcase - PGB5I
Tree Uplighting Demonstration
Customer Videos
