Trulux | Static White Tape Light

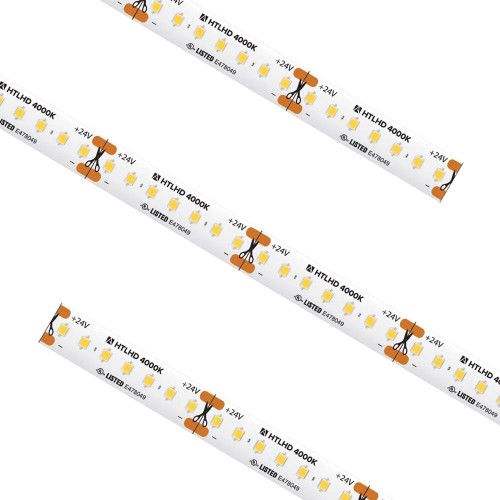

24V Static White LED Tape Light, 16.4' Reel, Dimmable High Output Strip Lighting, 3.65 Watts & 385 Lumens Per-Foot, IP54 Rated, Cuttable Every 1.51", Easy Installation - TPL-AML-HTLHD
24V Static White LED Tape Light Main
product detail banner

Trulux | Static White Tape Light

24V Static White LED Tape Light, 16.4' Reel, Dimmable High Output Strip Lighting, 3.65 Watts & 385 Lumens Per-Foot, IP54 Rated, Cuttable Every 1.51", Easy Installation - TPL-AML-HTLHD
SKU:
TPL-AML-HTLHD
BRAND:
American Lighting
Weight:
1.00 LBS
subtitle:
Trulux | Static White Tape Light
Voltage::
24V
Color::
1800K - 2700K
Color::
3000K - 4000K
Color::
5000K - 6000K
Type::
Spool
$153.27
product detail banner mobile

Included:

  • (x1) 16.4' Tape Light Reel
  • (x1) Attached 6' Lead Wire
  • (x3) Trulink 4-in-1 Connector Block (QTY 10)
  • (x3) 6′ Trulink 4-in-1 Connection Kit
  • (x3) 6′ HD Power Feed

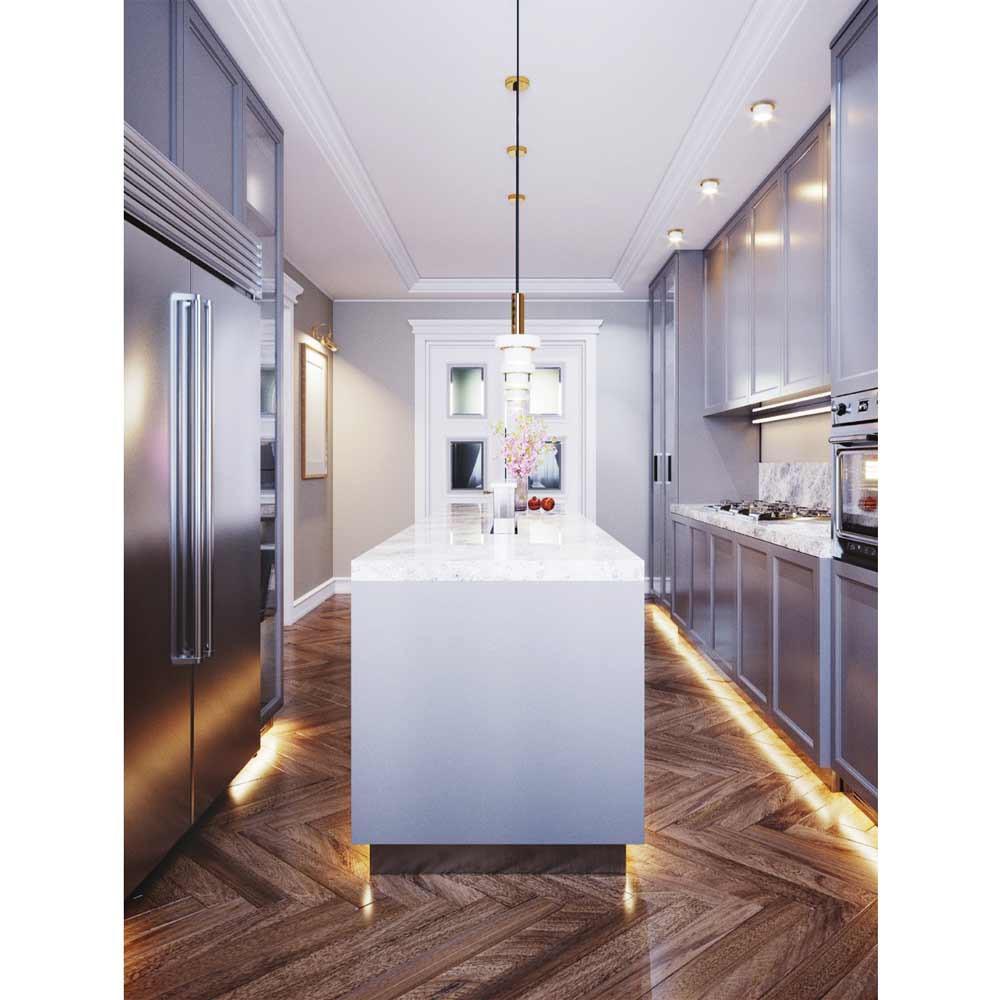

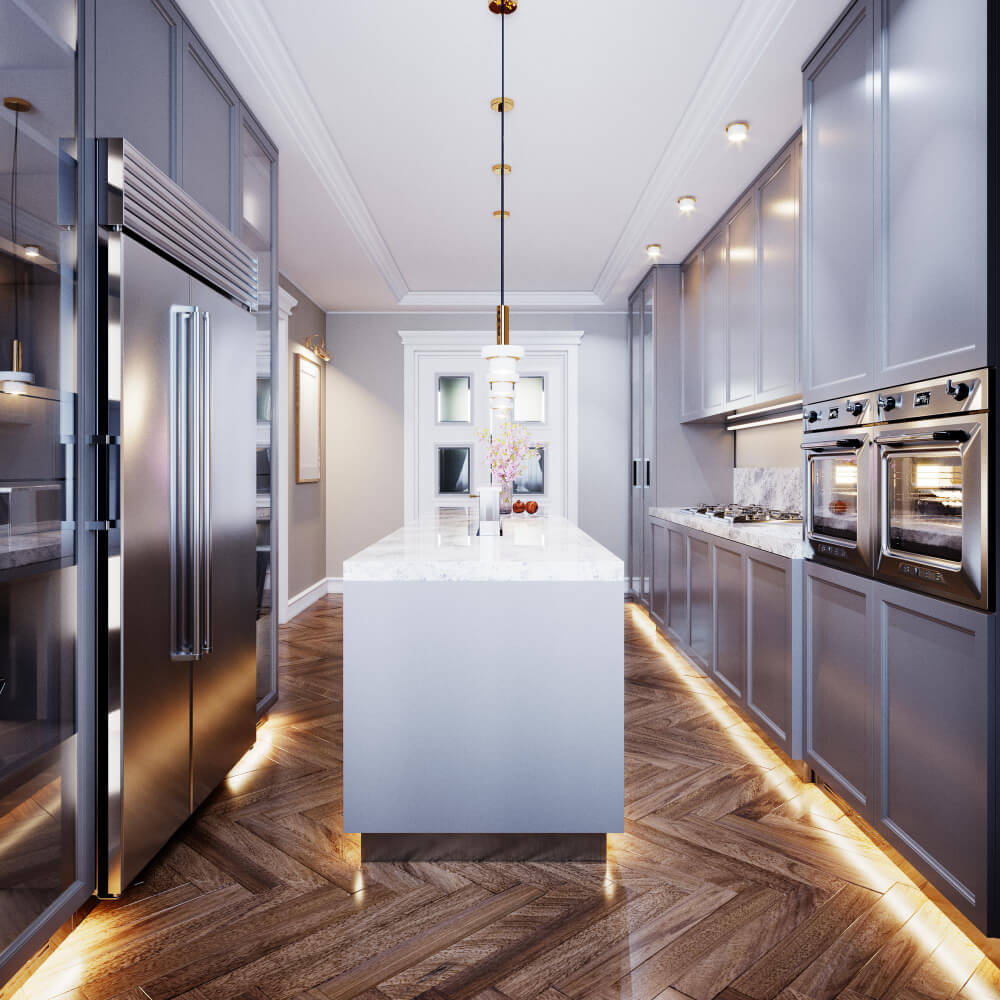

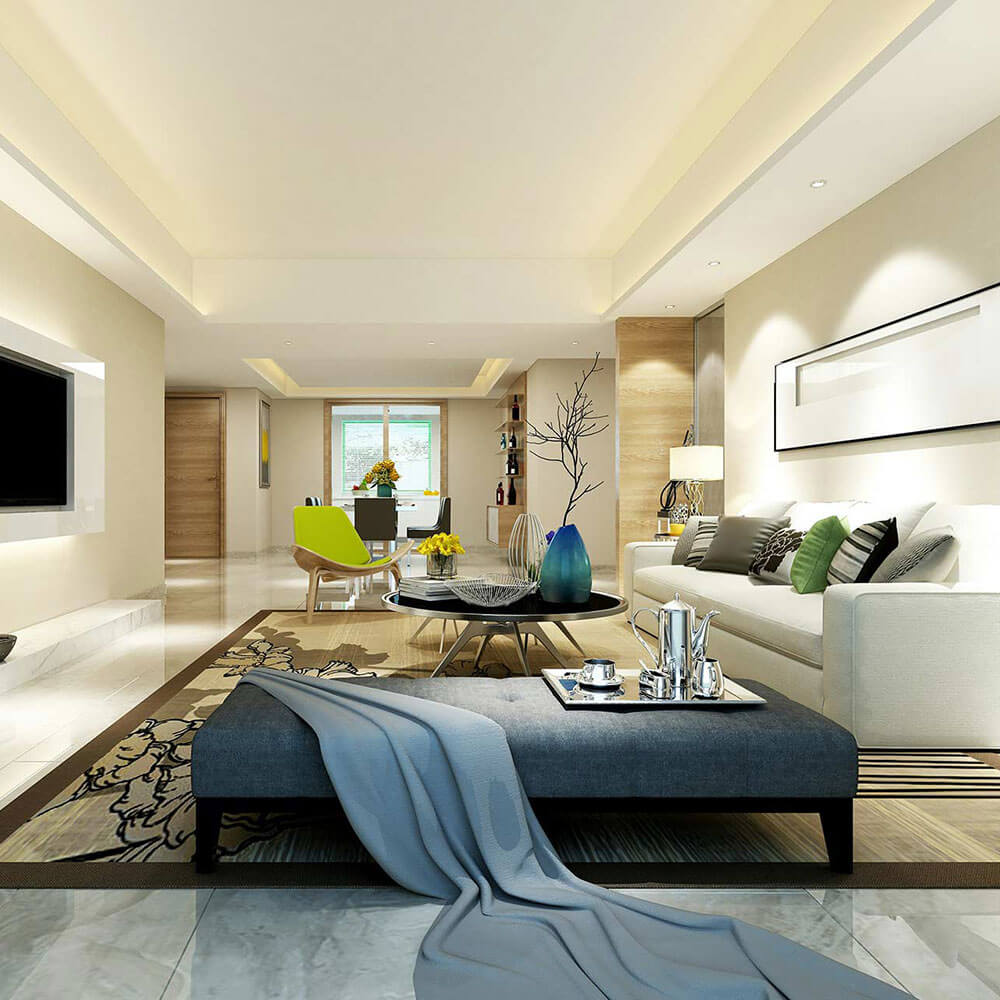

Looking for seamless illumination for your kitchen, cabinetry, or office spaces? The Trulux Static White HD Tape Light is a great choice. Featuring a range of white color temperature options, this high output tape light is designed for high-performance for diverse applications. This strip light is also very easy to install and is cuttable every 1.51" allowing for custom lighting applications. Featuring dimming capabilities, an IP54 rating, and wireless controls, the Trulux LED Tape Light can transform any space with ease.


  • Static White CCT Options

    High Density Performance

    Engineered with tightly spaced LEDs for high output and precision lighting, achieving up to 385 lumens per foot while maintaining energy efficiency.

    Static White CCT Options

    Choose from a range of color temperatures including 2700K, 3000K, 3500K, 4000K, and 5000K, delivering perfect illumination for any setting.

  • Easy Installation

    Easy Installation

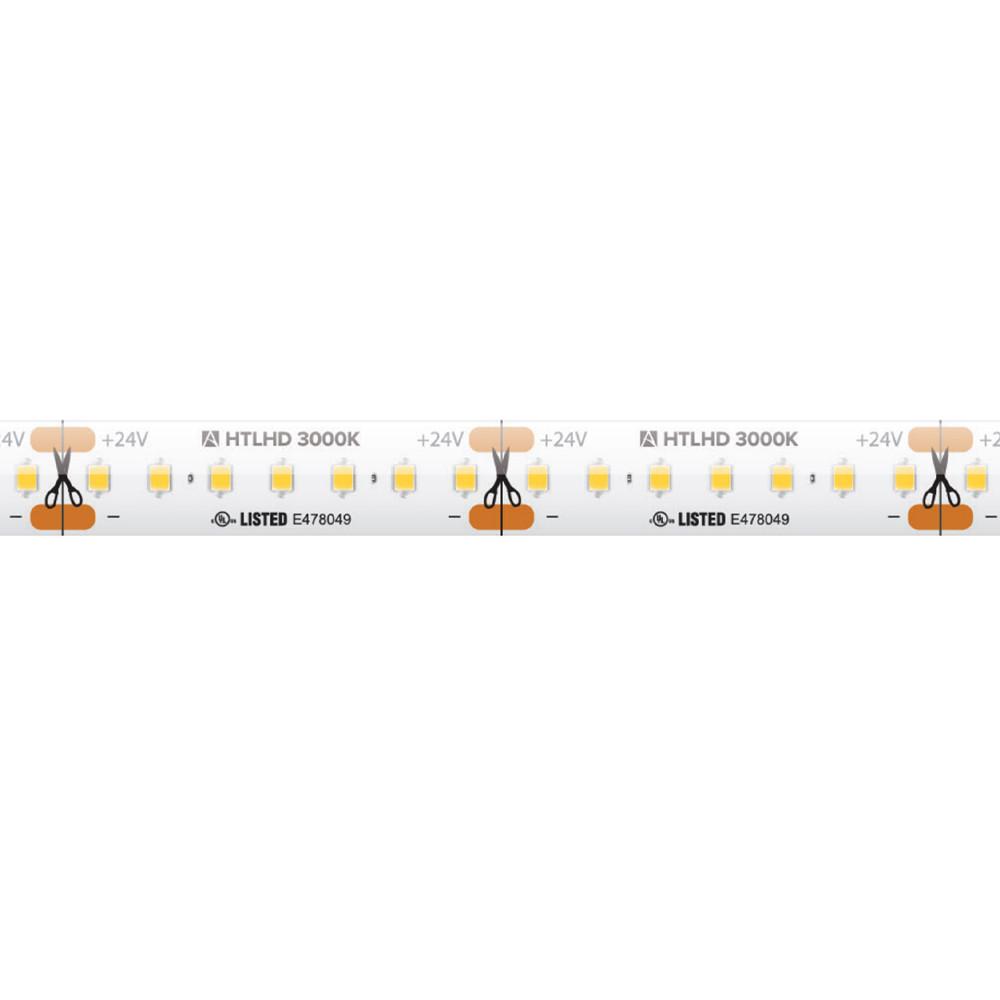

    Featuring 3M VHB adhesive backing and cuttable every 1.51 inches, this tape light ensures hassle-free installation for any custom project.

    Dimmable & Versatile

    Compatible with most TRIAC and ELV dimmers, offering 5-100% dimming range for tailored lighting control in any environment.



Primary Side Dimming Set Up:


Simple Dimming Set Up Diagram
Voltage 24V
Wattage 3.65W / ft
Lumens Up to 385Lm / ft
CCT Options 2700K / 3000K / 3500K / 4000K / 5000K
CRI 90+
Max Run 27ft

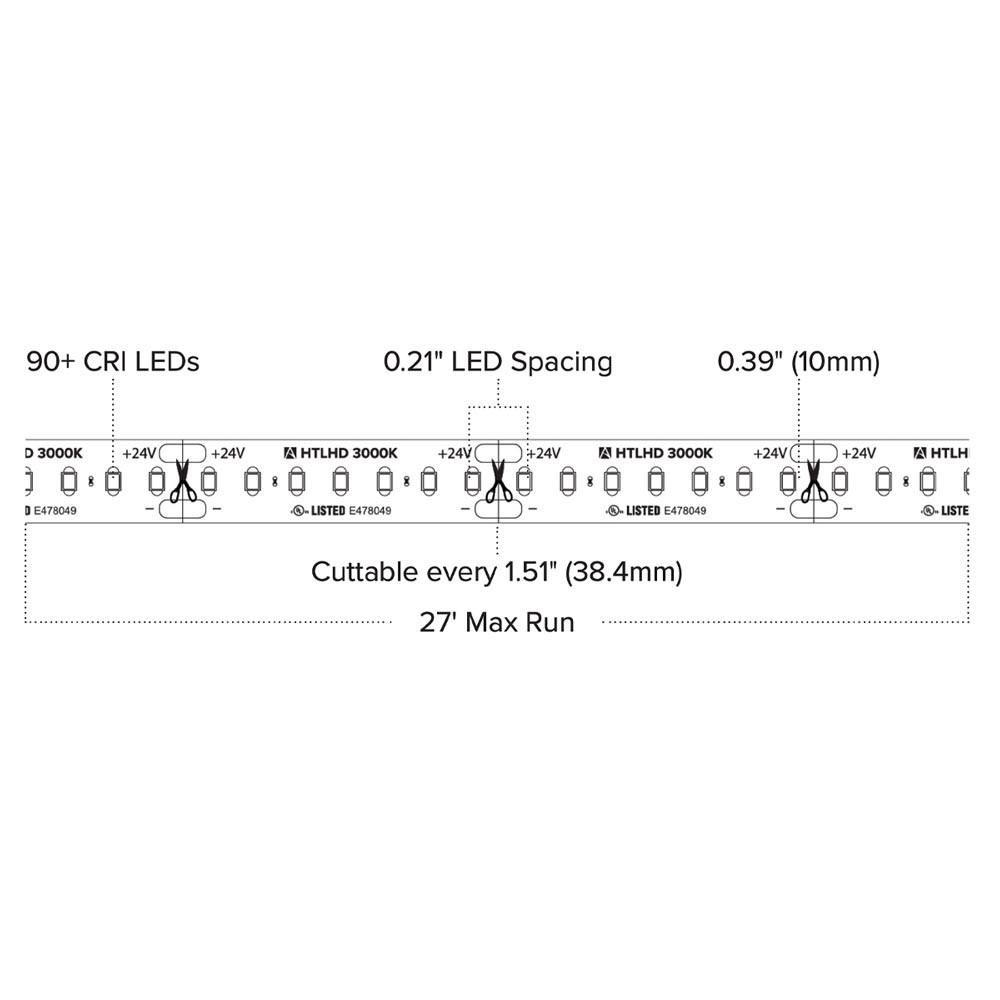

Cutting Points 1.51” (38.4mm)
IP Rating IP54 - Coated
Dimming TRIAC / ELV (5-100%)
Dimensions 0.39” (10mm) W x 0.06” (1.65mm) H
Beam Angle 120°
Operating Temp 5°C (41°F) to 70°C (158°F)
Certifications cULus Listed - Dry / Damp Location
Rated Life 50,000 Hours

Tape Light Resources

Specification SheetSpecification Sheet Download
Specification SheetCut Sheet Download
Instruction SheetInstruction Sheet Download

Dimensions

Product Dimensions
