180-Degree Solar Motion Sensor Security Light

Overview
Specifications
Videos

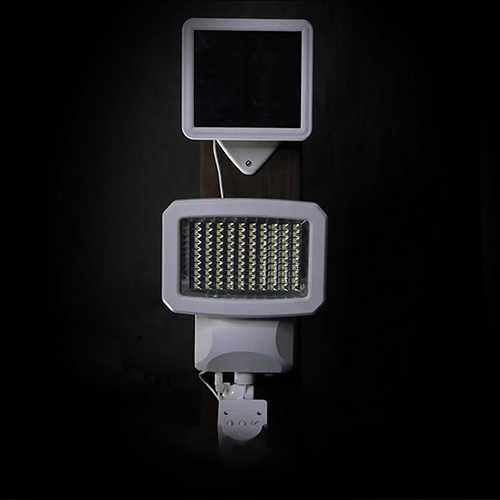

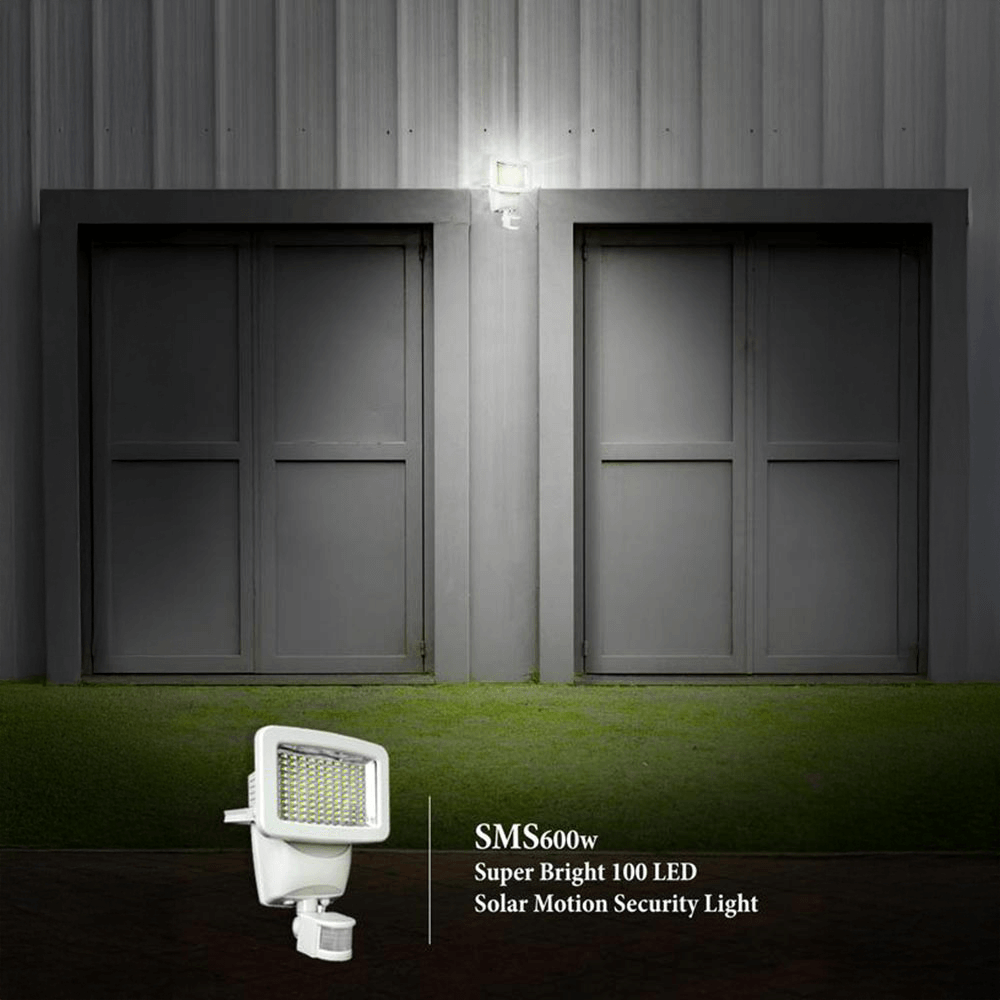

AQLighting is proud to feature the 100 LED, super bright Solar Motion Sensor Security Light by Classy Caps. This outdoor flood light is designed to effectively illuminate any outdoor area such as your home, business, driveway, parking lot, loading dock and entrance way. With its 180 degree motion sensor detection range & up to 10 meter (30 ft.) detection distance this powerful fixture will cast a brilliant 800 lumen bright white light for a secure, well lit area. The adjustable solar motion sensor security light will stay lit for a time range of 10 seconds to 2 minutes and its solar panel can be mounted up to 4.5 meters away from the light fixture. Easy to install, included hardware, high-end specifications, and a modern design the Solar Motion Sensor Security Light will surely impress and perform.

Features

Features an adjustable detection range of motion as well as a wall mount.
Manufactured from a durable white plastic (ABS) construction featuring a clear glass lens.
Features a light duration range from 10 seconds to 2 minutes as well as a lux day-night adjustable on-off switch.
Allows for a quick and easy Do It Yourself installation.
Includes 5 long life AA Ni-MH rechargeable batteries.
Includes 100 super bright SMD LED’s that cast a brilliant white light.
Features motion sensing up to 10 meters & approx. 180 degree detection
Delivers 800 Lumens with a Kelvin Range of 4000K – 5000K.

Solar Security Light Instructions

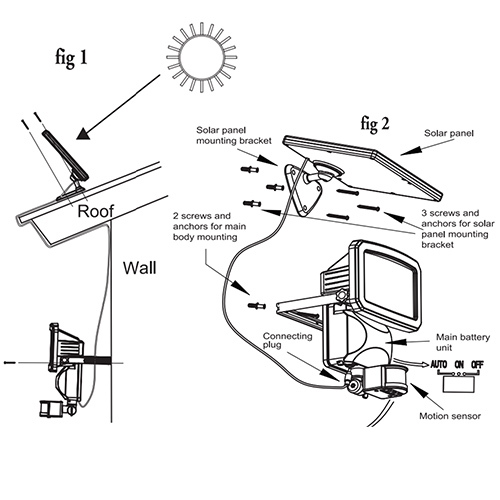

1) Choose the desired location. Remove metal bracket from light fixture by removing knobs on both sides of bracket. Use the holes on the roof/wall bracket as a template to mark the correct position. (fig. 1)
2) Secure bracket to solid surface using supplied hardware. Re-attach light fixture to mounting bracket.
3) Attach solar panel to mounting bracket using smallest phillips head screw provided (fig. 2). Mount solar panel in you desired sunny location. Connect the solar panel to your light fixture by joining the connection plug as shown (fig. 2).
4) Turn the switch to AUTO (fig. 2) Allow the fixture to receive a minimum of 48 hours of sunlight to allow the rechargeable batteries to reach maximum capacity.
5) Adjust duration (10 sec - 2 min), sensitivity and lux by turning each dial to the desired position (fig. 2).

Color Temperature	4000-5000 Kelvin / Bright White
Fixture Material	White ABS
Lumens	800 LM
Bulb Type	Integrated LED
Lens Material	Glass
Power Type	Battery Operated, Solar
Glass Type	Clear
CRI Rating	80
Detection Range	30 ft
