Constant Voltage Driver, Low Voltage Driver, Black Powder Coated Steel - ITR-EMC-MLE60-12DC

12V DC Mini Dimmable Transformer

Constant Voltage Driver, Low Voltage Driver, Black Powder Coated Steel - ITR-EMC-MLE60-12DC

12V DC Mini Dimmable Transformer
SKU:
ITR-EMC-MLE60-12DC
Wattage required
$118.99
Call us with any questions
(800) 865-7221

Specifications

Single Circuit 12VDC 450Hz
Input Voltage 100-277V 50/60Hz
Max Input Current 0.9A
Output Voltage
Without Load
12.1VDC
Output Voltage
Fully Loaded
12VDC
Max. Total Wattage 60W
Max Output Current 5A
Efficiency 90%
Load Regulation 1%

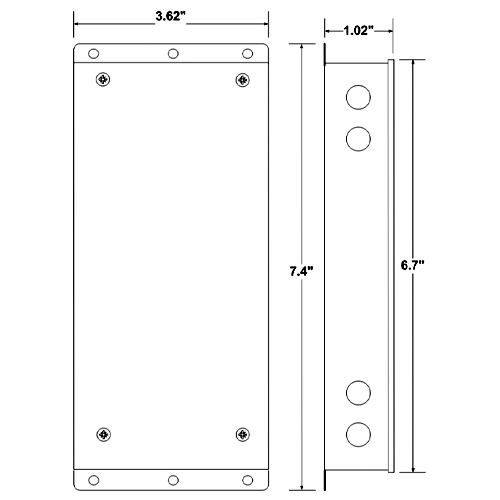

Dimensions 7.4"H / 3.62"W / 1.02"D

60W 120W 200W 300W Specifications

Specification Sheet Download

The MLE Series from Emcod offers universal mini transformers perfect for low voltage applications. Featuring a constant voltage, the 12V DC driver feature flicker free dimming capabilities with excellent line and load regulation. Offers overload, short circuit and thermal protection and can be paired with a variety of compatible dimmers. With a range of optional wattages, this indoor/outdoor low voltage driver will surely perform and impress.

The MLE Series from Emcod offers universal mini transformers perfect for low voltage applications. Featuring a constant voltage, the 12V DC driver feature flicker free dimming capabilities with excellent line and load regulation. Offers overload, short circuit and thermal protection and can be paired with a variety of compatible dimmers. With a range of optional wattages, this indoor/outdoor low voltage driver will surely perform and impress.
