Durable Low Voltage 12DC Indoor Transformers

IN STOCK - Ready to ship

Durable Low Voltage 12DC Indoor Transformers

SKU:: ITR-EMC-EDD60-12DC
Brand:: Emcod

Only left in stock

$116.99

Are you a Trade Professional?
Log in to your Pro account, or sign up here to receive exclusive trade pricing and other Pro benefits today!

Specifications

ELECTRICAL PARAMETERS:
INPUT VOLTAGE	120V 50/60HZ
MAX. INPUT CURRENT	0.6A AT FULL LOAD
OUTPUT VOLTAGE WITHOUT LOAD	12.2VDC
OUTPUT VOLTAGE FULLY LOADED	12VDC
MAX. TOTAL WATTAGE	60W
MAX. OUTPUT CURRENT	5A
EFFICIENCY	90%
LOAD REGULATION	2%
RIPPLE	2%
60w ELECTRICAL SPECIFICATIONS:
Output	Constant Voltage
Input Range	120VAC
PFC design	Built-in active PFC function
Protections	Short circuit/ Over load/ Over temperature
Heat dissipation	Cooling by free air convection
Waterproof performance	For dry and damp locations (US)

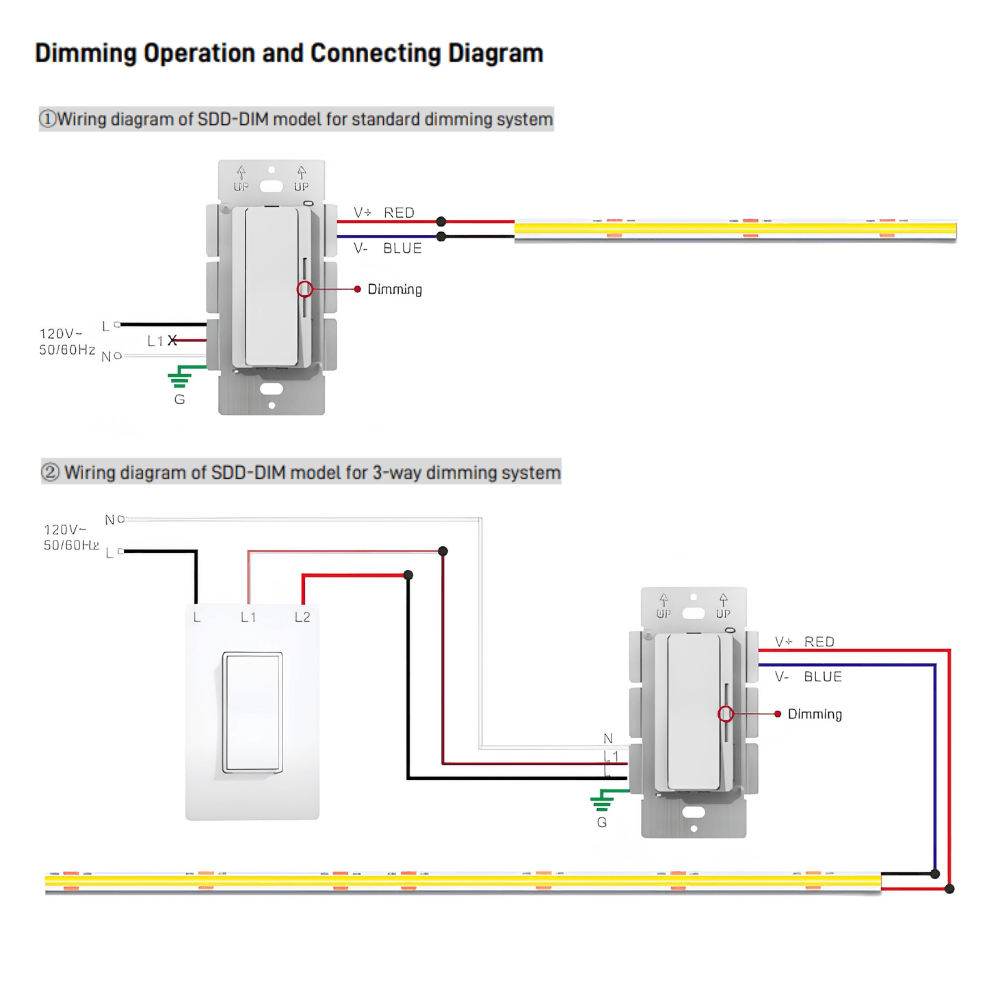

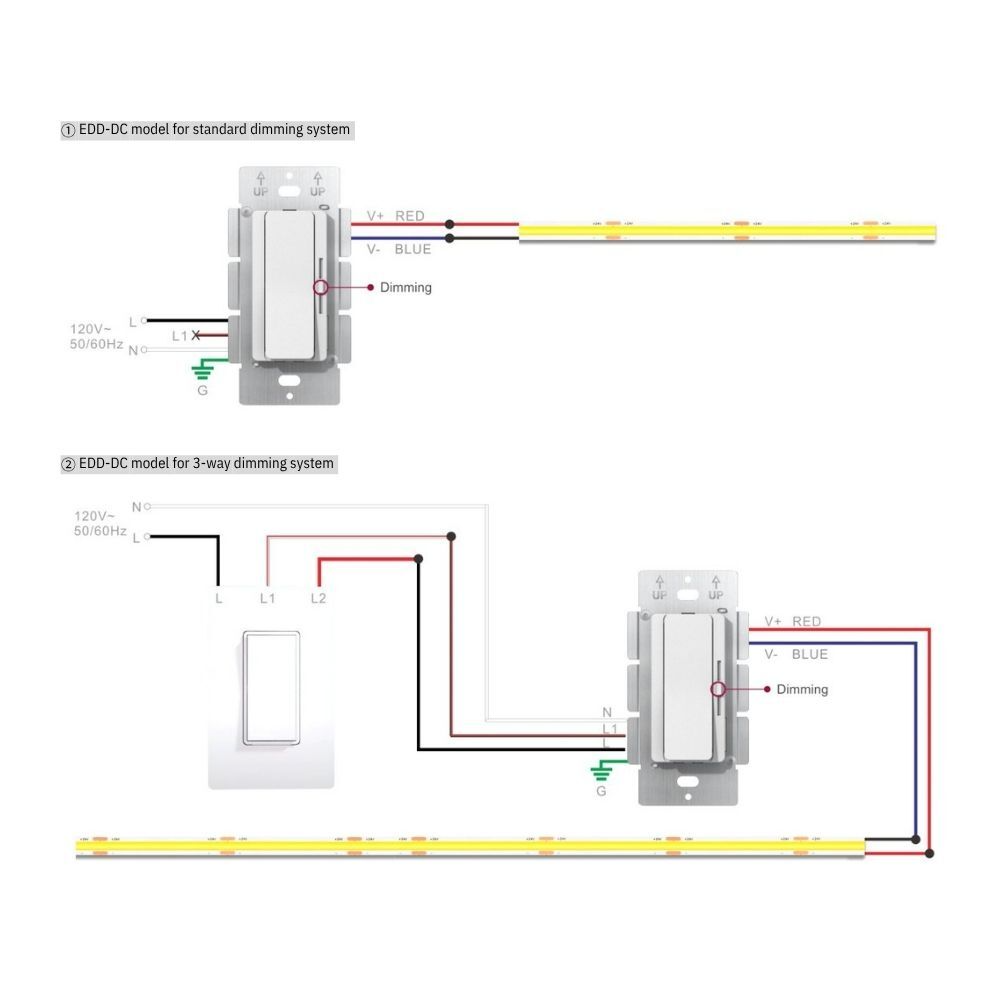

Design features	1. Fine-tune output voltage can be adjusted slightly 2. Preset dimmer with on/off switch 3. 3-Way switches 4. Eliminated compatibility issues between drivers and switches
Dimming range	0.3%-100%
Application	Suitable for the application of LED lighting
Warranty	5 years warranty
Others	16KHZ PWM output with dimming curve is a gamma 2.2 curve
120w ELECTRICAL SPECIFICATIONS:
Output	Constant Voltage
Input Range	120VAC
PFC design	Built-in active PFC function
Protections	Short circuit/ Over load/ Over temperature
Heat dissipation	Cooling by free air convection
Waterproof performance	For dry and damp locations (US)
Design features	1. Fine-tune output voltage can be adjusted slightly 2. Preset dimmer with on/off function 3. 3-Way switches 4. Eliminated compatibility issues between drivers and switches
Dimming range	0.3%-100%
Application	Suitable for the application of LED lighting
Warranty	5 years warranty
Others	20KHZ PWM output with dimming curve is a gamma 2.2 curve

Spec Sheet Download 60 Watt

Spec Sheet Download 120 Watt

Installation Instructions

Overview

INPUT VOLTAGE:120V 50/60HZ
MAX.INPUT CURRENT:0.6A AT FULL LOAD
OUTPUT VOLTAGE WITHOUT LOAD:12.2VDC
OUTPUT VOLTAGE FULLY LOADED:12VDC
MAX. TOTAL WATTAGE:60W
MAX. OUTPUT CURRENT:5A
EFFICIENCY:90%
LOAD REGULATION:2%
RIPPLE:2%
