12V LED Brass Underwater Fountain Light Submersible LED Pond Lighting - LED-LV308 - DABMAR

Crafted Brass

Commercial Construction

ETL Approved

Pre-Wired w/ 252" of 16/3 Underwater Cable

Includes LED PAR36

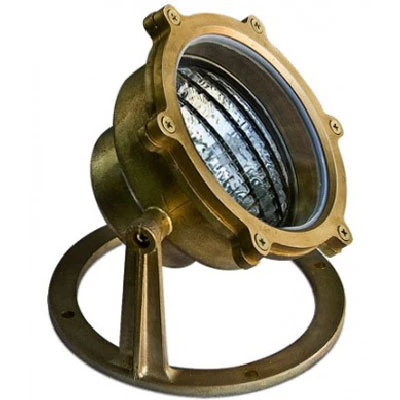

The big brother version of underwater pond lighting fixtures, the LED-LV308 is a PAR36 based, brass underwater light which is commonly found in fresh water ponds and fountains due to its versatile nature. The LED-LV308 head is mounted on an adjustable aiming bracket, which allows you to control the light fixture's angle, from general area illumination to tight spotlight to high angle highlighting. Rated for a maximum of 50w bulbs, the LED-LV308 underwater fountain light has plenty of overhead when it comes its power rating, allowing you to substitute in higher output bulbs without worry. Pre-wired with 21' of UL Listed 16/3 underwater cable, this brass fountain light comes ready to be integrated into your low voltage lighting system.

Please be aware that when using underwater fixtures, you must avoid using strong acid chemicals in that body of water as it will destroy the fixtures. For more detailed information, please click here.

Material	Brass
Voltage	12V
Socket Type	N/A - Terminal Leads + Adjustable Bracket Holder
Bulb Type	PAR36
Power Rating	50w Max
Wiring	252" of UL Listed 16/3 Underwater Cable
Mounting	Surface

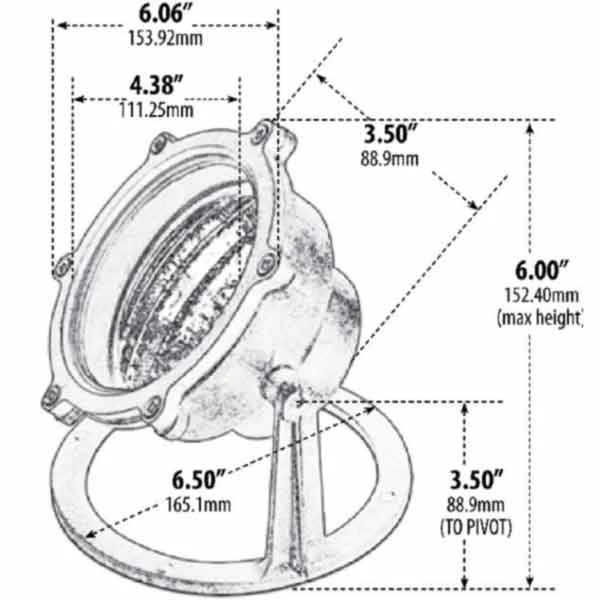

Dimensions	6" X 6.5" X 6.5"
Certifications	ETL Approved for Underwater Applications

INSTALLATION PREPARATIONS AND PRECAUTIONS:
Please read this instruction sheet carefully.
Luminaires must be installed in accordance with the National Electric Code (NEC) and local codes. Failure to do so may result in serious injury and/or damage to the luminaire.

SAFETY WARNING: Luminaire can become very hot, depending on lamp wattage used. Lens and metal around the lamp can become hot enough to blister/burn hands. Particular care should be taken not to place luminaires where small children can reach them, especially when high wattage lamps are used.

IMPORTANT SAFETY INSTRUCTIONS
THE LIGHTED LAMP IS HOT!!!
To avoid electrical shock, turn off the power at the circuit breaker before starting your installation project.

WARNING: TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS:

• Turn off/unplug and allow fixture to cool before replacing lamp.
• Lamps get hot quickly! Contact only switch/plug when turned on.
• Do not touch hot lens, guard or enclosure
• Keep lamp away from material that may burn
• Do not touch the lamp directly at any time. Use a soft cloth. Oil from the skin may damage the lamp when illuminated.
• Do not operate luminaire fitting with a missing or damaged cover.

NOTE: Always use UL recognized wire connectors.
