LED Mini Area Light Fixture Pro Kit, Bulbs and Accessories Included, Black, Bronze, Copper, 6 Pieces - OALK-PAM-1021

All Included Area Light Kit
product detail banner

LED Mini Area Light Fixture Pro Kit, Bulbs and Accessories Included, Black, Bronze, Copper, 6 Pieces - OALK-PAM-1021

SKU:
OALK-PAM-1021
BRAND:
AQLIGHTING
Weight:
10.00 LBS
Voltage::
12V
Material::
Brass
Finish::
Gun Metal
Finish::
Bronze
Fixture Count::
6
Type::
Area Light
$229.98
product detail banner mobile

Note:To modify this kit, please call (800) 865-7221
For longer runs, some applications may experience Voltage Drop. Click to learn more.

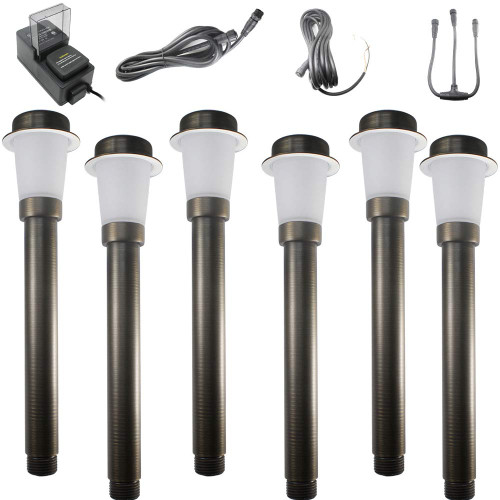

AQLighting presents an area light kit redesigned to capture the latest in lighting technology with sleek modern miniaturized form. Standing only 9.5 inches tall, the x6 brass mini top area light kit in a bronze finish brilliantly provides 250 lumens of output per fixture. The frosted diffuser provides exceptional lighting and resolves the issue of bulb glare. The x6 brass mini top area lights in a bronze finish are a part of an all inclusive exterior light system AQLighting’s No Splice Connection (NSC) series. Each kit includes x6 NSC mounting stakes, x6 LED JC BiPin warm white bulbs, x5 NSC t-connectors, x5 NSC jumpers, x1 15ft power cord, and an outdoor rated 60w transfer. Install the entire outdoor light system without owning a pair of wire cutters. This 12v, LED system is designed with the DIY homeowner in mind, and saves an immense amount of time and energy. Enjoy a beautiful, welcoming entrance to your home with this brass mini top area light kit.


No Splice Connection

A system designed by a general contractor to empower homeowners to embrace their savvy ability to light up their own landscape without needing to bring in a professional.

  • Low voltage, 12v lighting connected with a plug and twist watertight IP68 rated seal.
  • Add additional fixtures without worrying about extra cabling or looping at each fixture.
  • Tool free installation saves excessive labor and makes it simple for the average homeowner to personally update their own lighting.
Low Voltage Transformer

OTR-YLP-150 Transformer

  • Built out of heavy-duty ABS material rated for outdoor use to endure tough weather conditions.
  • A built-in photocell to allow the sun to control your lighting, in addition the transformer has an hour timer as well for further customized control.
  • The input this transformer takes is 120V AC 60Hz and has 3 output lines that provide 12V & 15V with a max power of 150-Watts.

Mini Design, Brilliant Output

  • Sleek, slim area light design for contemporary landscape design.
  • Bronze finish on brass fixture for an exceptional combination of beauty and durability.
  • Frosted diffuser for gorgeous ambiance without obnoxious bulb glare.

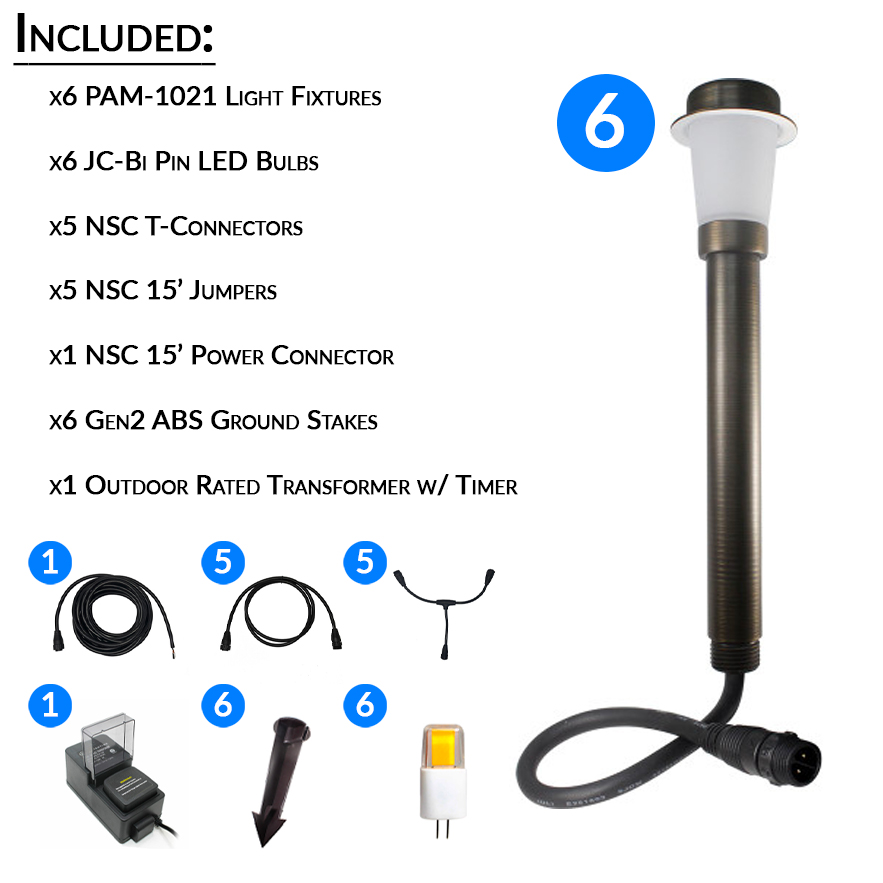

Included

  • 6 x Mini Die Cast Brass Hats
  • 6 x 6" Brass Stems
  • 6 x 18" NSC Leads
  • 5 x 12" NSC T's
  • 5 x 15' NSC Jumpers
  • 1 x 15'NSC Power Cords
  • 5 x LED JC-Bi Pin 2700K
  • 6 x Gen2 NSC ABS Stake
  • 1 x Outdoor Rated Transformer

Warranty

One year limited warranty against defects in construction.

Area Light Specifications

Material Brass
Voltage 12V
Socket Type UL Certified JC Bi-Pin (E230758)
Bulb Type JC Bi-Pin Cluster
Power Rating 2.3w/Fixture
Mounting Ground / Surface
Fixture Weight 2.12 lbs

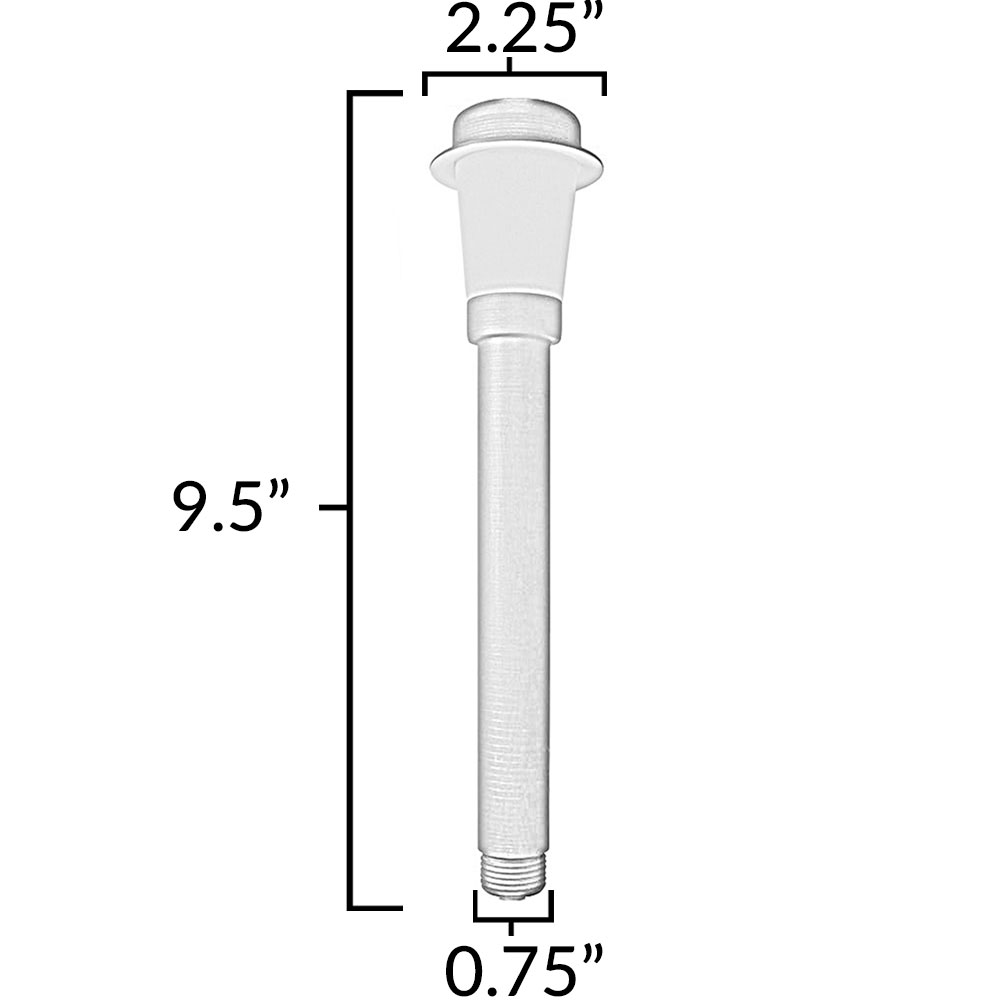

Dimensions


Product Dimensions

Frequently Asked Questions

Sleek Mini Area Light Fixture - PAMT-KH1021

Will this fixture run on 120v as well as 12v?

This fixture will run on 120 volt but you can not use the NSC wiring system and you have to use a 120 volt JC BI pin bulb instead of a 12 volt bulb.

If a 7-kit was bought, could you wire them all together w/o suffering Voltage drop?

Voltage drop depends on the length of the run, the total load and the gauge of the wire. If you use a 2.5 watt bulb and 30' jumpers for 7 fixtures you would still be within range. If you decided to use 4 watt bulbs and 30' jumpers, your voltage drop would be too great so you would have to think about either using our 12 gauge NSC jumpers or making multiple runs to lessen the load.

Are there extensions for added stem length?

No, this is designed as a mini bollard so we do not offer extensions.

Can you place the fixture deeper into the ground or do you need to follow instructions on the depth?

Yes, these are made of brass or copper which will not corrode so if you wanted them to be shorter, just bury them deeper into the ground.
