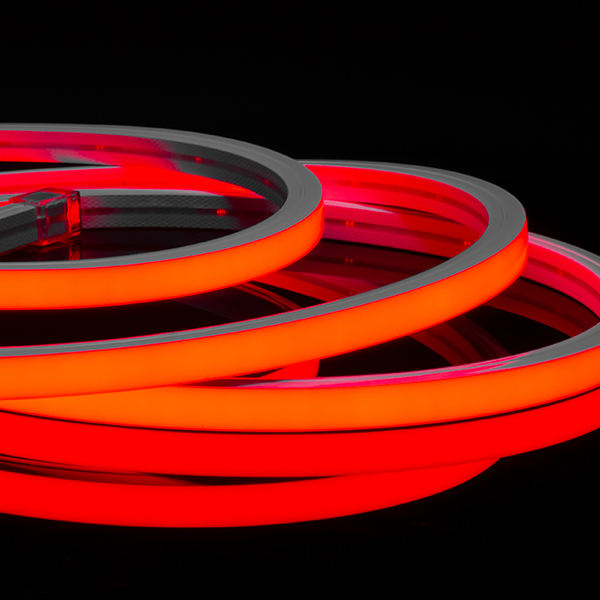

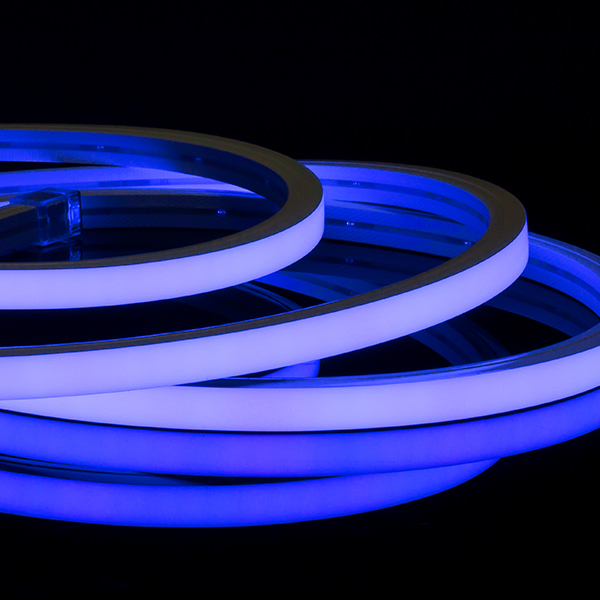

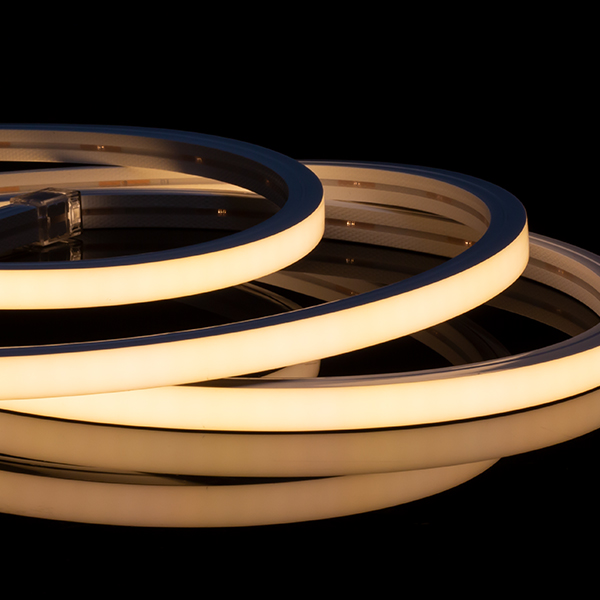

24V DC NeonFlex Pro-V Series Custom Cut Single Color Top Bend Strip Light, Dimmable IP67 Light Strip - NFPROV-CC

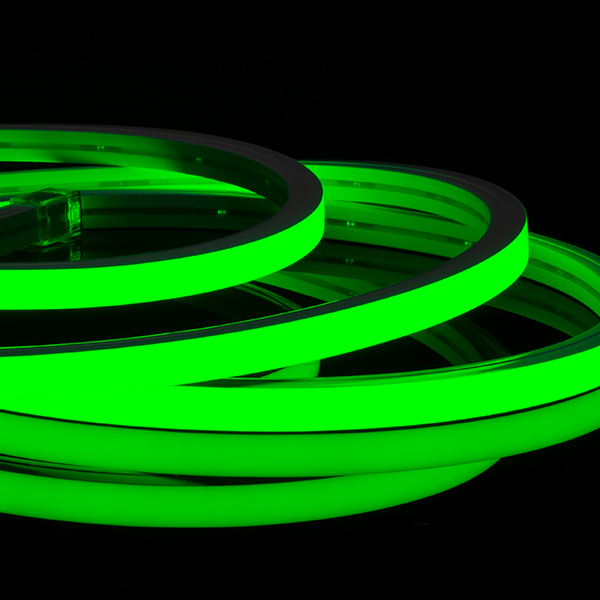

NeonFlex Shown in Green
product detail banner

24V DC NeonFlex Pro-V Series Custom Cut Single Color Top Bend Strip Light, Dimmable IP67 Light Strip - NFPROV-CC

SKU:
NFPROV-CC
BRAND:
American Lighting
Weight:
5.00 LBS
Type::
Custom Length
Voltage::
24V
Color::
Red
Color::
Green
Color::
Blue
$96.81
product detail banner mobile

Engineered for ultimate flexibility and precision, the NeonFlex Pro-V Single Color Strip Light elevates your lighting design. Customizable in lengths up to 55.77 feet, it seamlessly fits your architectural needs. Each custom cut assembly is equipped with your choice of power feed and an end cap, combining state-of-the-art technology with user-friendly features. Ideal for both intricate interior designs and large-scale outdoor applications, the NeonFlex Pro-V offers seamless, bright illumination tailored to your specifications. Experience the power of personalization and bring your innovative designs to life, ensuring every detail is perfectly illuminated.


Note: Cut points for this product are marked every 1.97" (50mm). If your desired length is not available to select, please view product spec-sheet for cut increment guide and/or call (800) 865-7221 for custom orders.


Versatile Installation

Versatile Installation

Adapt your lighting needs with front, side, and bottom power feeds, ensuring quick and flexible installations anywhere.

High Performance

High Performance

Achieve up to 149 lumens per foot with a consumption of just 3.05W per foot, blending efficiency with power.

Enhanced Durability

Enhanced Durability

Built to withstand challenging conditions, featuring UV, flame, and saltwater resistance, with an IP67 rating.

Smooth Dimming

Smooth Dimming

Fully dimmable from 5-100% using most DMX controls, tailor your lighting to fit any mood or setting.

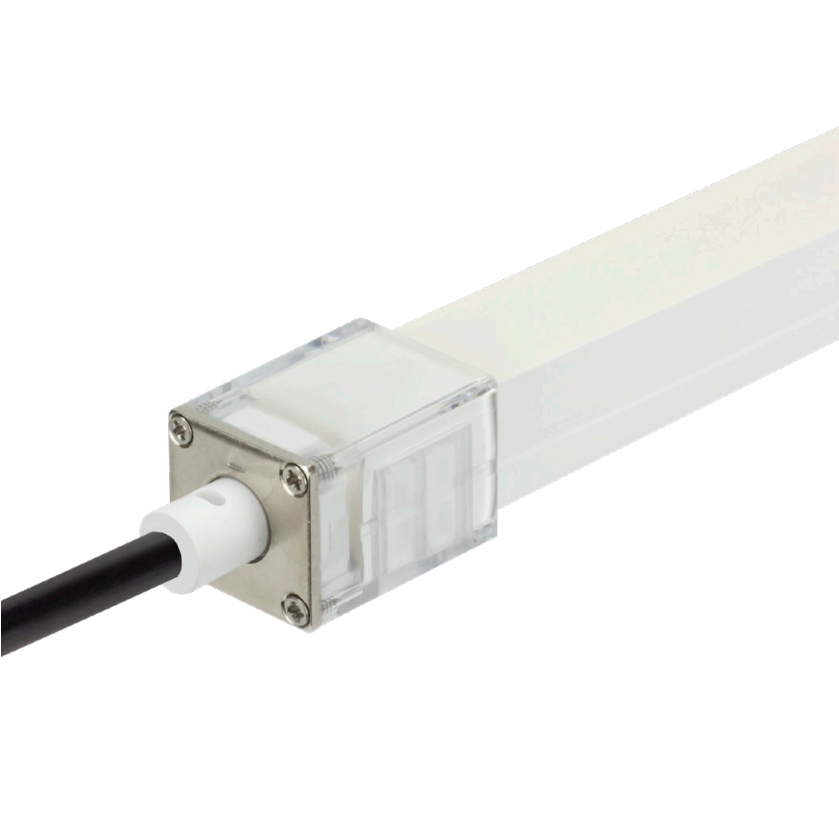

NeonFlex PRO-V Custom Cut Order Assembly

Each Custom Cut Order of NeonFlex Pro-V Single Color comes pre-assembled with your choice of power feed (front / bottom / left / right) and end cap.

NeonFlex Pro-V Custom Cut RGBW Assembly Diagram
Voltage 24V DC
Wattage 3.05W / ft
Lumens Up to 149Lm / ft
Color Options Red / Green / Blue
Max Run 55.7ft (5m)
Cutting Points 1.97” (50mm)
IP Rating IP67 - Jacketed
Dimming (5-100%) Via DMX Controls
Dimensions 0.63” (16mm) W x 0.59” (20mm) H
Beam Angle 120°
Storage Temp -25ËšC to 60ËšC
Ambient Temp -25ËšC to 45ËšC
Operating Temp -25ËšC to 45ËšC
Certifications cULus Listed - Wet Location
Specification Sheet Download
Instruction Sheet Download

Driver Spec Sheets


30W / 60W / 96W Spec Sheet
200W Spec Sheet
300W Spec Sheet

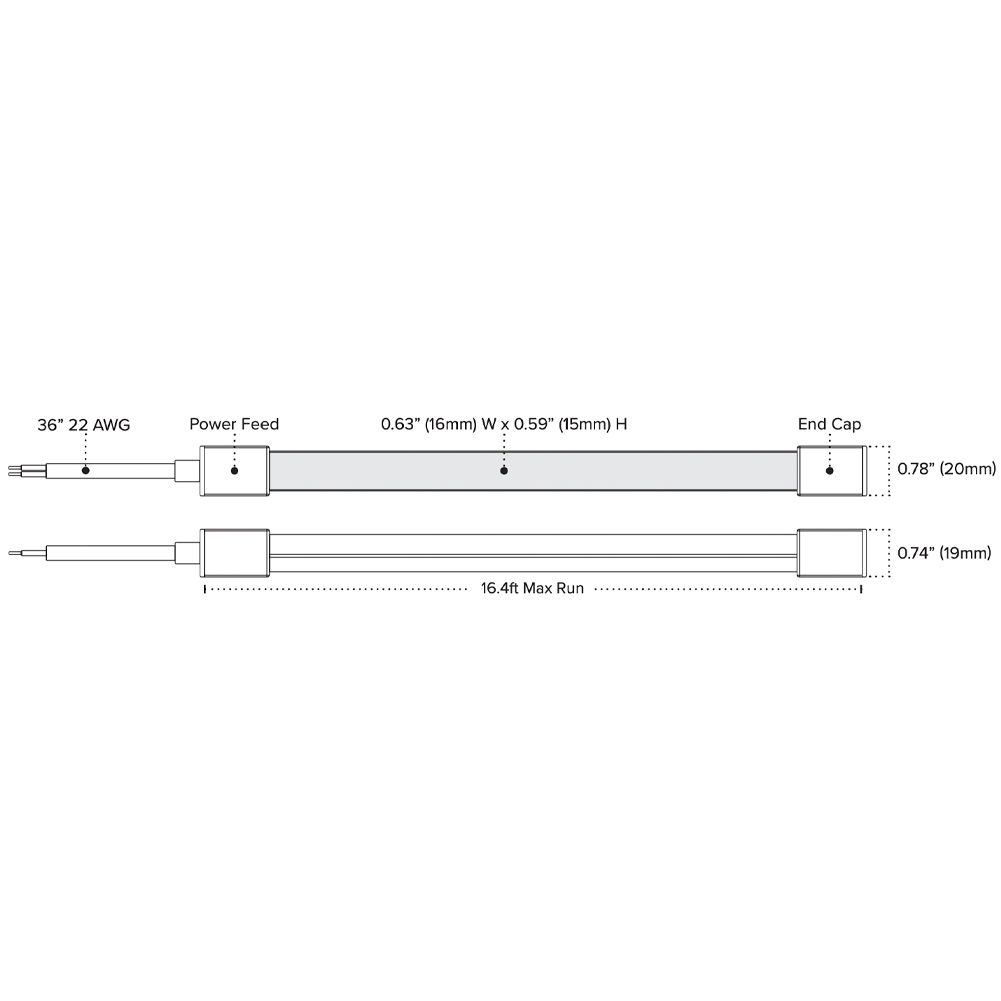

Product Dimensions


Product Dimensions
